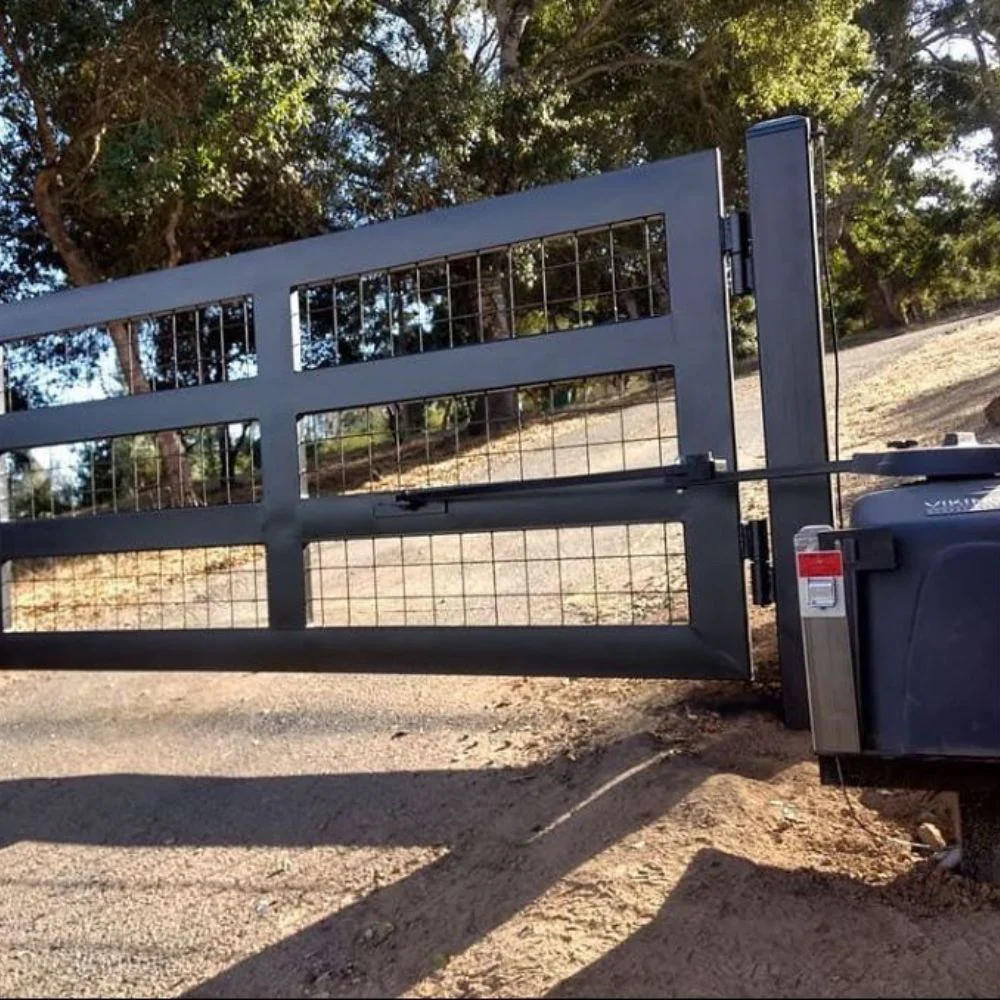

The R-6™ Solar Swing Gate Operator is perfect for applications where A/C power is not available or economical. The controller has its very own 12-volt power management system to use its solar regulators to their fullest potential. The V-Flex Solar will allow for soft stop and soft start for smooth and accurate operation. The chassis comes with spacious room, enough to fit a 35 amp hour battery without the need to purchase a separate enclosure.

Features

• Adaptive motor control
• Built-in voltmeter
• Lightning strike protection
• Multiple power options
• On-board display
• UL325 compliant
• Two monitoring inputs w/
• up to 4 devices per input
• Adjustable speed control
• Anti-tailgating feature
• Fail secure mode
• Fail-safe mode
• Manual release - mechanical
• Multiple power outage options
• Built-in 3A solar charger

Manufacturer's Warranty Period

• 3 Years

Technical Specifications

• Maximum Gate Capacity: 14 ft at 700 lb
• UL 325 Classification: Class I
• Operating Voltage: 24VDC
• Main Power Source: SOLAR 12VDC
• Accessory Power: 24VDC - 750mA
• Power Consumption: - Sleep 19mA
• Motor Current (Typical): 4.0A
• Operating Temperature: -4°F (-20°C) to 160°F (71°C)
• Opening Angle: 120°
• Gate Speed: 13-16 sec./90°

Product Literature

• R6 Swing Gate Operator Solar Residential User Manual
• R6 Swing Gate Operator Solar Residential Specifications Sheet
• Viking Limited Warranty Policy
