Pach and Company Quantum Q7000IP Series Multi-Tenant System (250 Tenant) Surface Mount | PAC-Q7000IP

Quantum Q7000IP Series Analog Web-Based Multi-tenant Systems (250 Tenant).

250 tenants, 600 cards, 600 codes, IP browser, Surface mount.

Features

• QWCM IP Module
• Remote access touch-tone phone (programmable)
• Postal Lock Ready
• Backlit Keypad

Manufacturer's Warranty

• 24 Months

Technical Specifications

• Input Power: 12VAC/12VDC Transformer Included
• Current Consumption: 1200mA
• Operating Temperature: 10ºF to 145ºF
• Liquid Crystal Display: 16 x 1, Viewing area 99mm x 13mm
• Tenant Capacity: 250
• Card Capacity: 600
• Code Capacity: 600
• Auto Door Schedules: 10
• Time Zones: 10
• Holidays: 20
• Temporary cards/codes: 10 cards/codes up to 10 times used
• Unlock Hold Door with cards/codes: 10 cards/codes
• Unlock Hold Door Timer: 1-98 hours
• Telephone line: analog dial tone
• Dry Contact Relay: 2
• Door Sensor: 2
• Auxiliary Input: 2, Programmable
• Satellite Access Control RS-485: max. 8 card reader, keypad, or combo
• Event report: 600 buffer
• Dimension (HWD): 10-13/16” x 8-5/8” x 3-3/4”

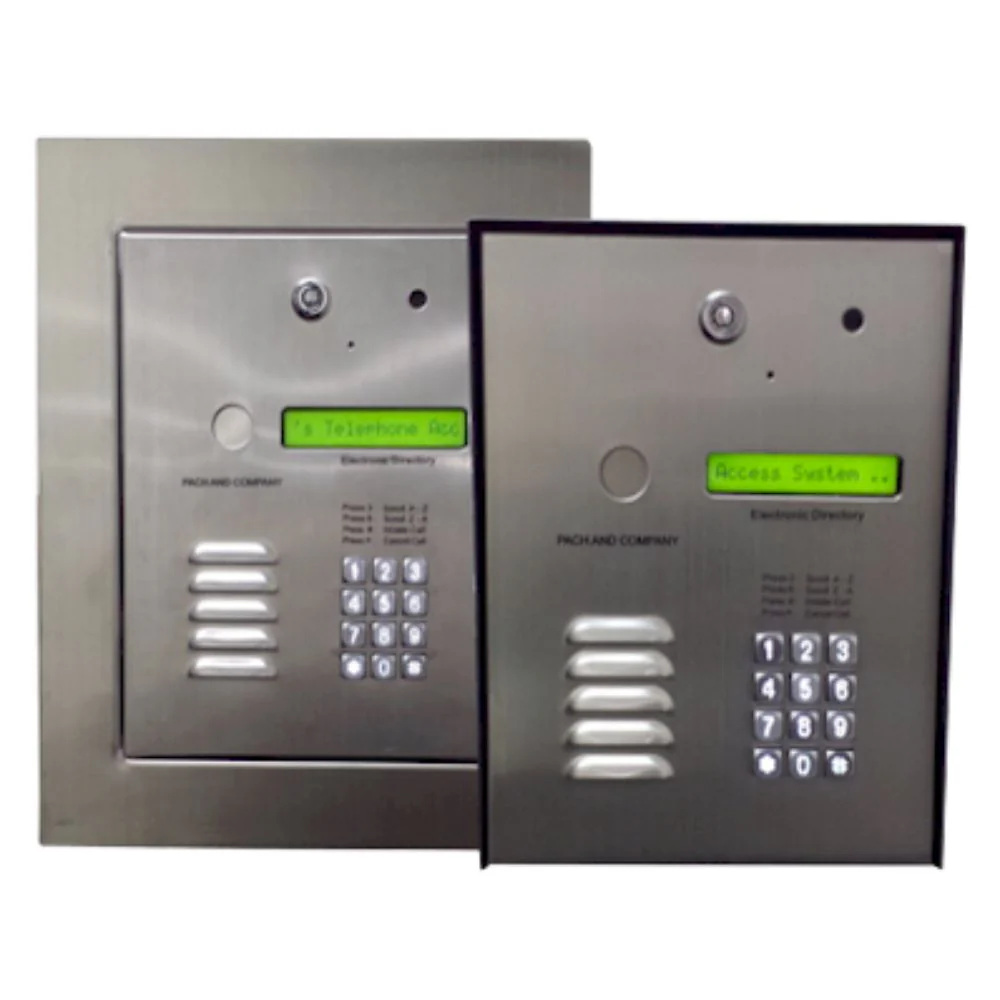

Note: The image shown is the full flush and surface mount versions. If you need the Full Flush Mount Version please click here: PAC-Q7000IPFF

Product Literature

• Pach and Company Q7000IP Cut Sheet
• Pach and Company Q7000IP Quick Guide
• Pach and Company Q7000IP Programming Manual
• Pach and Company QWCM Manual
