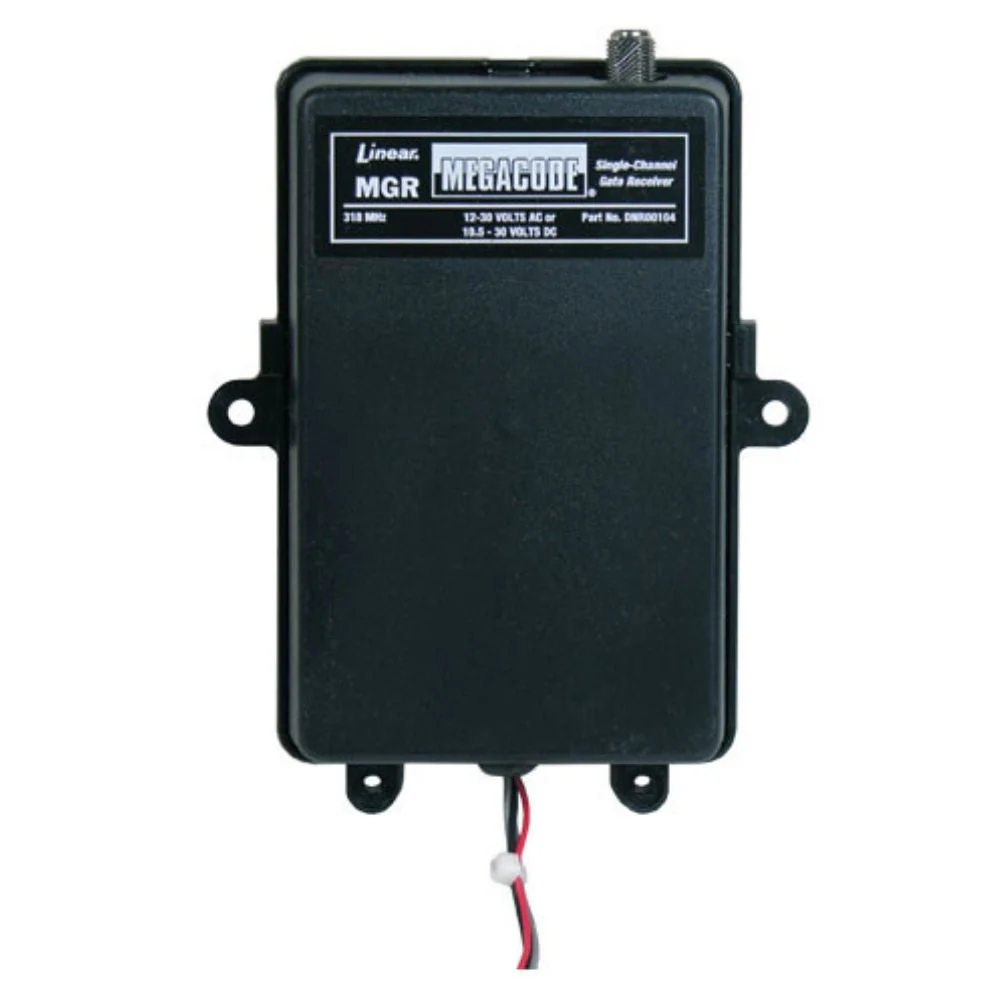

Linear 1-Channel 12-24V AC/DC MegaCode Gate Receiver | LIN-MGR
Linear 1-Channel 12-24V AC/DC MegaCode Gate Receiver | LIN-MGR
Designed for use with automatic gate operators or systems where a remote antenna is needed. The receiver uses the MegaCode radio format with over a million possible code combinations. Up to 40 transmitters can be programmed into the receiver.
Accessories for use with MGR are models, EXA-1000-Omni-directional Remote Antenna and EXA-2000-Directional Remote Antenna.
Includes
- Whip antenna
- 3 feet of coaxial cable
- Bulkhead connector
Features
- Memory can store up to 40 MegaCode transmitters
- Auto voltage sensing - no jumpers to set
- Single Form "A" (normally open) relay rated at 30 Volts AC/DC up to 5 Amps
Technical Specifications
- Power: 12 - 30 VAC or 10.5 - 30 VDC
- RF frequency: 318 MHz
- Dimensions: 3.625 x 5.25 x 1.5 inches
- Codes: 1,000,000+ (MegaCode format)
