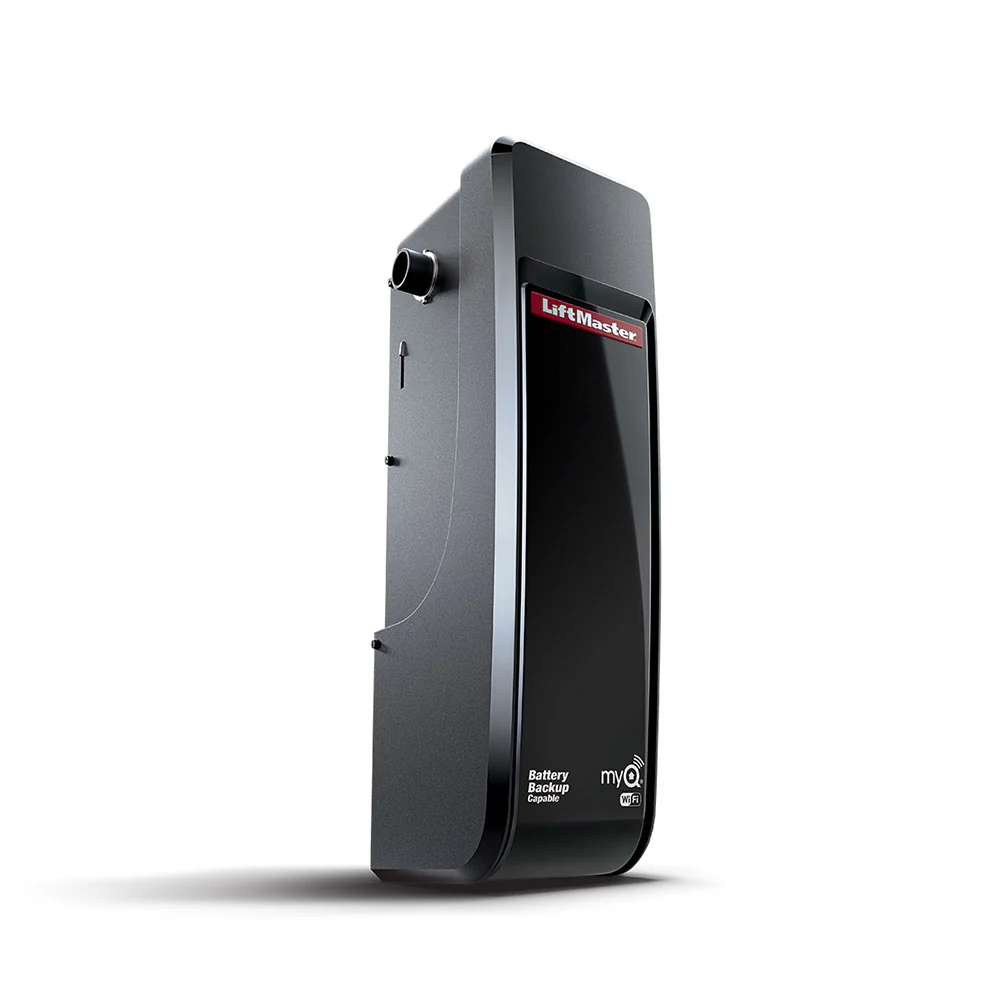

LiftMaster LJ8900W Light-Duty Commercial Door Operator for Sectional Doors

The LiftMaster LJ8900W is ideal for applications using smaller, lighter commercial sectional doors with light-duty cycle requirements. Light-Duty cycles up to 10 cycles/hour; fewer than 25 cycles per day. This operator is ideal for dock doors, small warehouses, small businesses, and outbuildings.

Includes

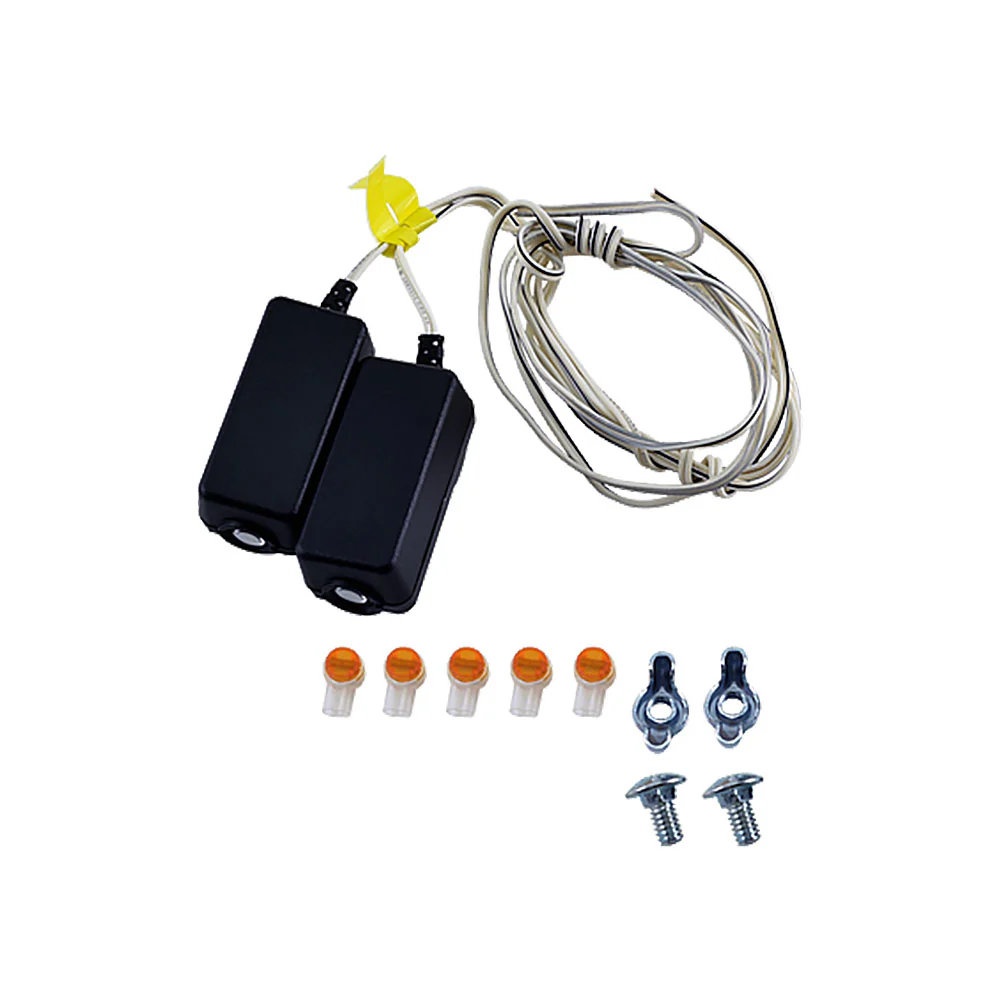

• Safety Sensor Kit 041A5034

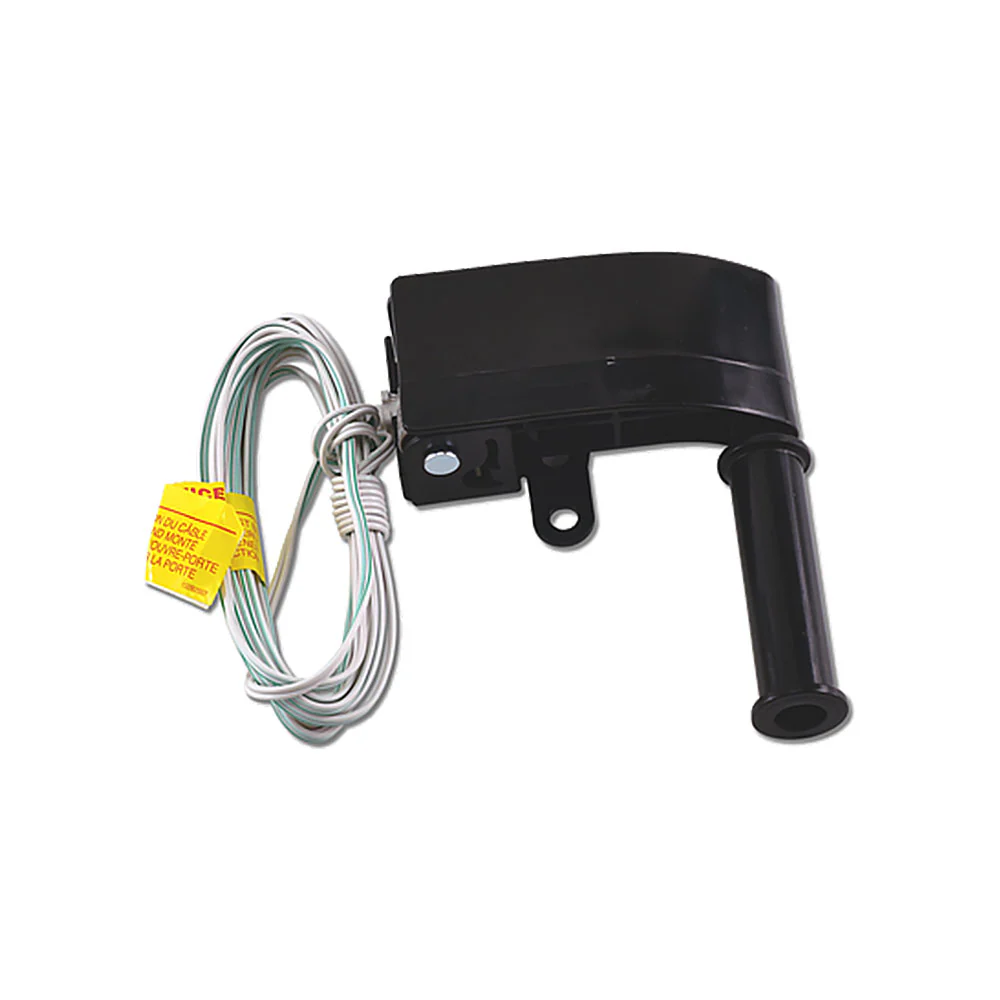

• Cable Tension Monitor Kit 041A6104

Features

• Operator Speed: 7.5-8.5 Inches per second
• Limit Setting: Electronic
• Emergency Disconnect for Manual Operation: Emergency release rope with handle
• Emergency Disconnect with Auto-reconnect: To reconnect, pull down on the handle again to re-engage
• Programming: Tactile buttons
• Circuit Board: Solid-state circuit board
• Motor Operator Wall Control: Single-button control station
• Push Button Station: Single-push button control

Business Connectivity

• Monitor and Control: myQ® technology enables monitoring and control of the operators through a mobile app.
• Facility's Network: Easily connect the operator to the facility's network with built-in Wi-Fi.
• Real-time alerts: Indicate the status of doors via email.

Installation Features

• Universal Mounting: Yes, can be mounted to either the right or left side of the door without the need for any special accommodations
• Maximum Door Height: 14 feet
• Maximum Door Width: 18 feet
• Maximum Allowable Square Footage: 180 square feet
• Internet Connectivity: myQ Technology enables remote monitoring and control of the commercial door via a smartphone, tablet, or computer (operator directly connects via built-in wi-fi, myQ app required.)

SMART

• myQ Technology enables monitoring and control of the facility operators through a mobile app.
• Built-In WI-FI for simple operator internet connection.
• Real-Time Alerts indicate the status of doors via email or push notifications.

QUIET AND SECURE

• Smooth Start/Stop reduces wear of your door system for lasting performance.
• Battery Backup Capable ensures access even when the power is out
• Automatic Door Lock Capable secures the door every time it closes.
• Security+ 2.0 safeguards facility access with rolling code technology, opening for registered devices only.
• The Protector System auto-reverses the door if an entrapment protection device detects an obstruction.

RELIABLE

• Warranty: 2 years

Capacity

LiftMaster Commercial Jackshaft Operator Model LJ8900W Installation Overview

Product Literature

• LiftMaster Light-Duty Commercial Door Operator LJ8900W Product Guide
• LiftMaster Light-Duty Commercial Door Operator LJ8900W Data Sheet
• LiftMaster Light-Duty Commercial Door Operator LJ8900W Installation Manual
• LiftMaster Light-Duty Commercial Door Operator LJ8900W Product Drawing
• LiftMaster myQ Business Facility
