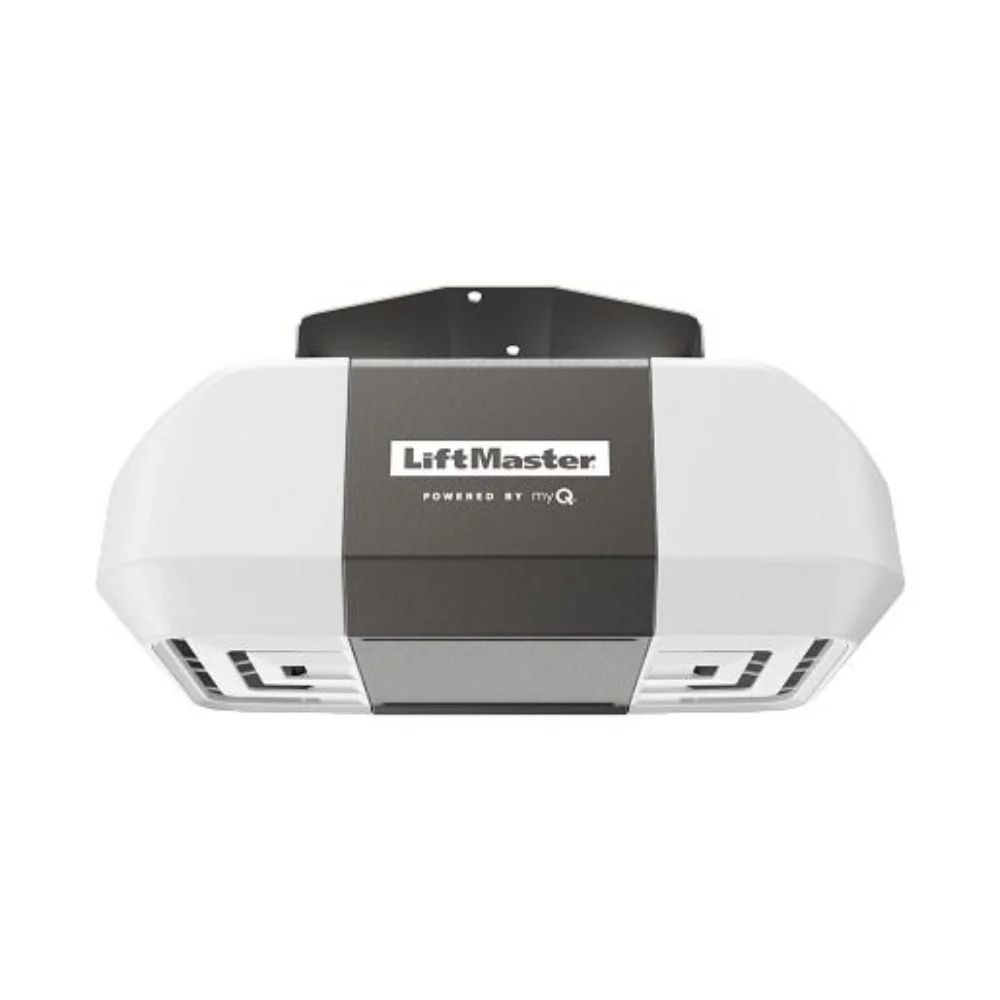

LiftMaster Light-Duty Commercial or Residential Door Operator | LIF-ATSWTMC
LiftMaster Light-Duty Commercial or Residential Door Operator | LIF-ATSWTMC
This is an MC Product. Commercial products will now use a single frequency and alternative frequency mode instead of TriBand frequencies.
Features
Light Duty Applications
- Dual-RatedĀ for Residential and commercial doors with light-duty cycle requirements
- Ideal forĀ use in pole barns and similar structures for storage and manufacturing
Smart
- myQĀ® TechnologyĀ enables monitoring and control of the property operators through a mobile app or theĀ myQ FacilityĀ website.
- Built-In BluetoothĀ for simple operator internet connection.
- Built-In Wi-FiĀ for an easier connection to the building's Wi-Fi network.
- Real-Time AlertsĀ indicate the status of doors via email or push notifications.
Quiet and Secure
- Motor Vibration Isolation System (MVIS)Ā for smoother and quieter operation.
- Security+ 2.0Ā®Ā safeguards access to property with an encrypted signal to offer extended range.
- The Protector SystemĀ®Ā auto-reverses the door if an entrapment protection device detects an obstruction.
Reliable
- High-Starting Torque MotorĀ with overload protection.
- Rated LoadĀ 600 inch-pounds per second to satisfy a wide range of light-duty cycle applications.
- WarrantyĀ 1 year
HomeLinkĀ® CompatibleĀ
Compatibility Bridgeā¢ (not included) necessary for certain vehicles. Visit bridge.liftmaster.com to find out if a Bridge is needed.Ā HomeLinkĀ® is a registered trademark of Gentex Corporation.
Technical Specifications
- Radio Receiver:Ā Security+ 2.0Ā® technology standard on-board; accepts up to (40) single-button remote controls plus up to (4) wireless keypads plus up to (16) myQ devices
- Voltage Connections:Ā Single-phase: 120VAC, 60Hz
- Drive Reduction:Ā Helical and worm gears (operating 10-tooth sprocket)
- Brake: NO
- Trolley Roller Chain:Ā #48 standard
- Maximum Door Height:Ā 14 feet
- Maximum Door Width:Ā 18 feet
- Maximum Allowable Square Footage:Ā 252 square feet
- Internet Connectivity:Ā myQĀ® Technology enables remote monitoring and control of the commercial door via a smartphone, tablet, or computer (Operator directly connects via built-in wi-fi, myQ app required)
Note:Ā This commercial/residential door operator must be equipped with the external monitored entrapment protection photo eyes that are provided standard. Use only LiftMaster monitored entrapment protection devices to meet UL 325 requirements.
