HySecurity SlideDriver 200 UPS | HYS-SlideDriver200-UPS

Note: This product has been discontinued and is no longer available.
It has been replaced by the new SlideDriver II SD200V, offering improved performance and updated features.

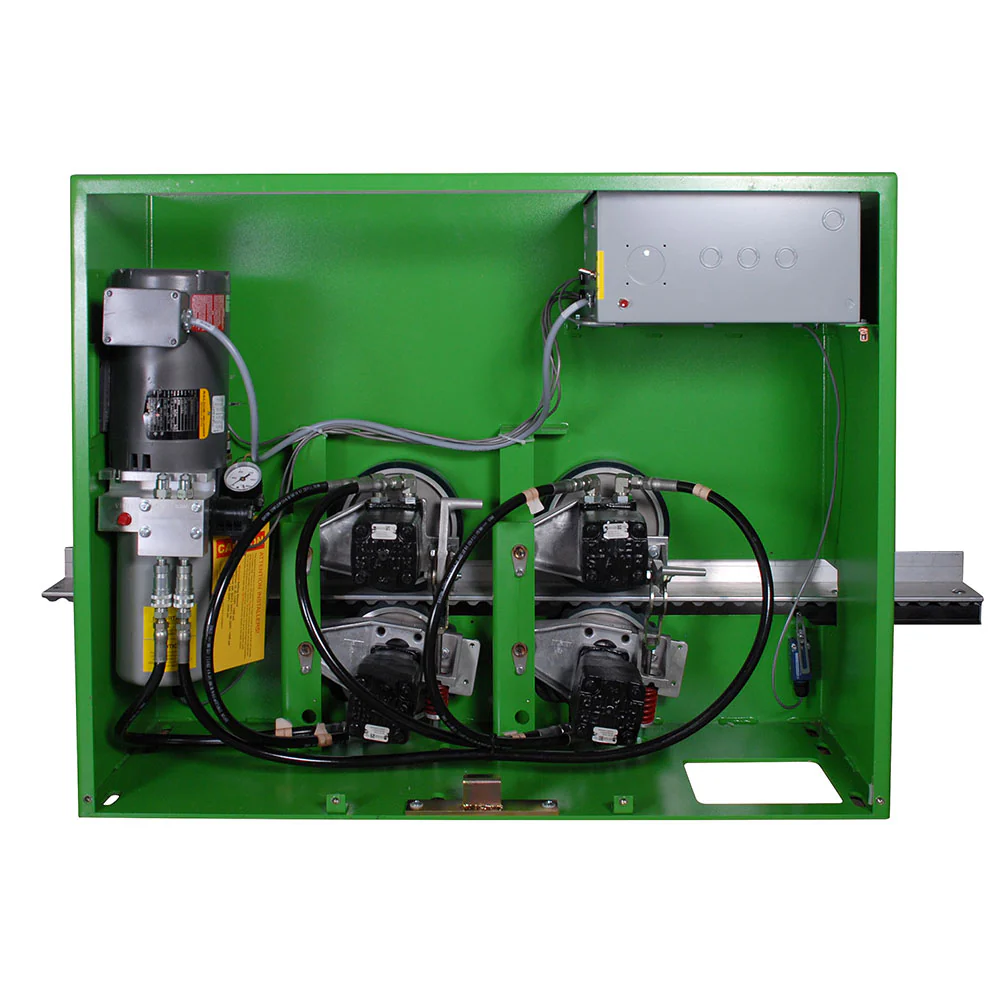

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.

The Uninterruptible DC Power Supply provides up to 2,000 ft (609 m) of gate travel after AC power loss.* Available in single phase only: Low voltage: 115V 60/50Hz (requires 30A branch circuit) or High voltage: 208-230V 60/50Hz (requires 15A branch circuit). Be certain to order the correct HyCharger DC™ voltage model as chargers are not field convertible. Includes XtremeDrive™ System. Listed and restricted to UL 325 usage class III, IV.

Note: XtremeDrive™ System requires HySecurity XtremeDrive™ rack and a drive rail. Operator price includes 52 ft (16 m) of rack, but no drive rail.

Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Features

• Move the longest, heaviest gates up to 20,000 lb
• DC Power Supply (UPS): Uninterruptible Power Supply provides a minimum of 3,000 ft (914 m) of gate travel using 24VDC batteries

Operator Components

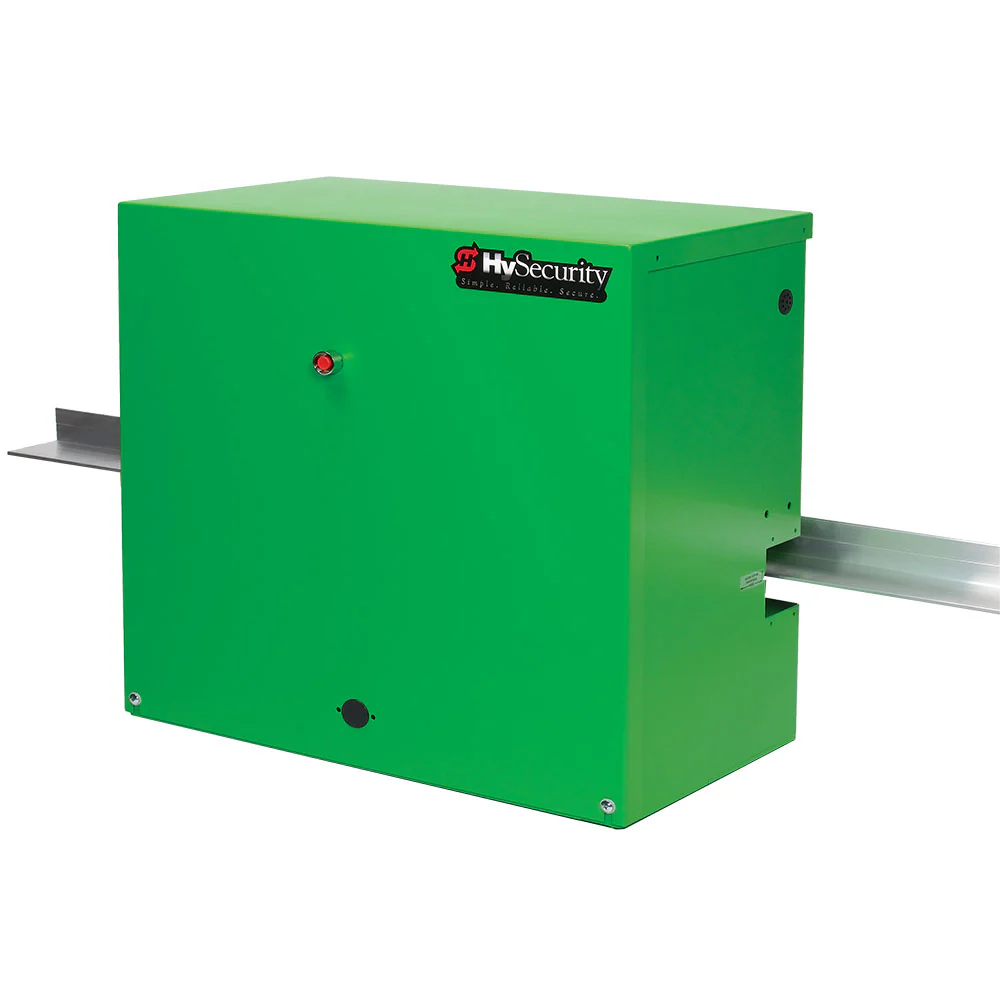

Model: SlideDriver 200 UPS

• Part Number: 444 DX ST
• Est. Ship Weight: 394 lb
• Shipping Dimensions: 40"w x 32"d x 38"h
• Shipping Class: 70

Model: DC Power Supply 150

• Part Number: DCPS-150
• Est. Ship Weight: 335 lb
• Shipping Dimensions: 39"w x 28"d x 39"h
• Shipping Class: 70

Product Literature

• SlideDriver Product Brochure
• SlideDriver Installation Instructions (all models)
• SlideDriver Installation Instructions (Spanish)
• SlideDriver Programming & Operations Manual (all models)
• DC Power Supply Installation Instructions
