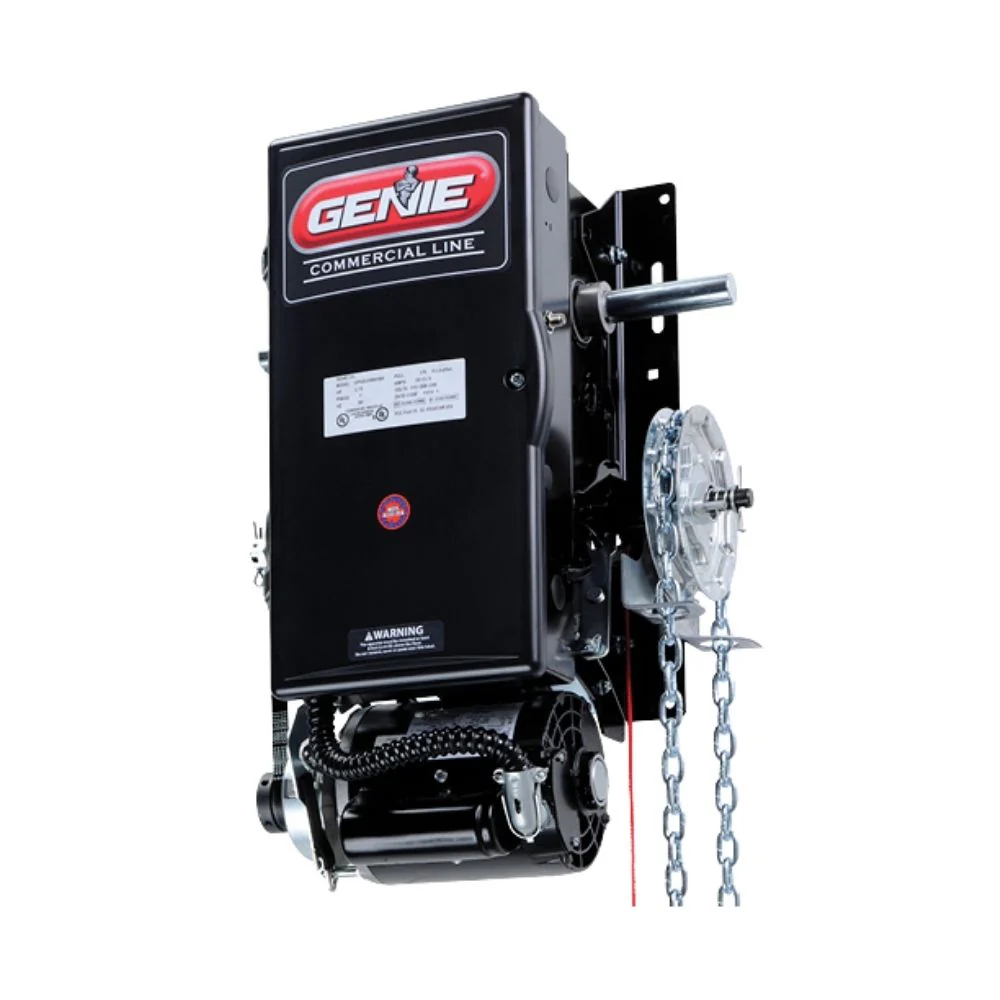

Genie GCL-H Standard Duty Hoist Door Operator with Brake - 1/2HP, 1 Phase

The GCL-H is designed for high or full-lift sectional and rolling doors that have a
30-cycle/hour or fewer duty requirements. Advanced features and robust mechanical design combine to provide a standard-duty operator that sets a new standard for productivity.

Includes

• Internal Radio
• 3 Button Control Station
• Standard Photo-eyes
• Brake
• Door Sprocket
• Hoist Chain
• Door Chain

All in One Pre-Packaged System

UL 325 2010 APPROVED

Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.

GCL-H Advantages

• MultiVolt® - Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
• Single Phase: 115/208/230V AC
• Maximum Door Weight:
• Sectional: 1120 lbs.
• Rolling: 998 lbs.
• Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality.
• LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.
• Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
• EZ Limit® provides for push-to-set limits that stay synchronized with door through a long-term loss of power.
• TensiBelt® primary drive reduction eliminates the need to adjust belt tension.
• Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.

Standard Features

• EZ Limit® electro-mechanical limits.
• MultiVolt® voltage simplification.
• Max run timer automatically adjusts to up and down run time.
• TensiBelt® primary reduction.
• Delay on reverse.
• 16-character LCD display.

• UL 325 2010 approved.

• Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen.
• 3-button control station.
• 2-year/20,000 cycle warranty.
• Programmable mid-stop.
• Emergency hoist for manual operation; available in right or left hand.

Construction

• Motor: AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.
• Drive: Primary - TensiBelt® auto tensioning poly-V J-belt. Secondary - Chain and sprocket reduction.
• Brake: 24V DC disc brake standard.
• Friction Clutch: Adjustable clutch to help protect against door and operator damage.
• Precision Radial Ball Bearings: Included in critical areas throughout the powertrain.
• Emergency Hoist Manual Operation: Electrically interlocked manual hoist with floor level disconnect.
• Pre-wired to accept: Monitored entrapment device such as photo eyes. Single or 3-button control stations. External interlock switches.
• On-Board Timed Closed: Set via LCD display from 2 seconds to 5 minutes
