ASE J-SLIDE Gate Opener Kit Promo | FAS-J-SLIDECH300BBUP

Note: This item is currently on backorder and will be available by the end of December 2025.

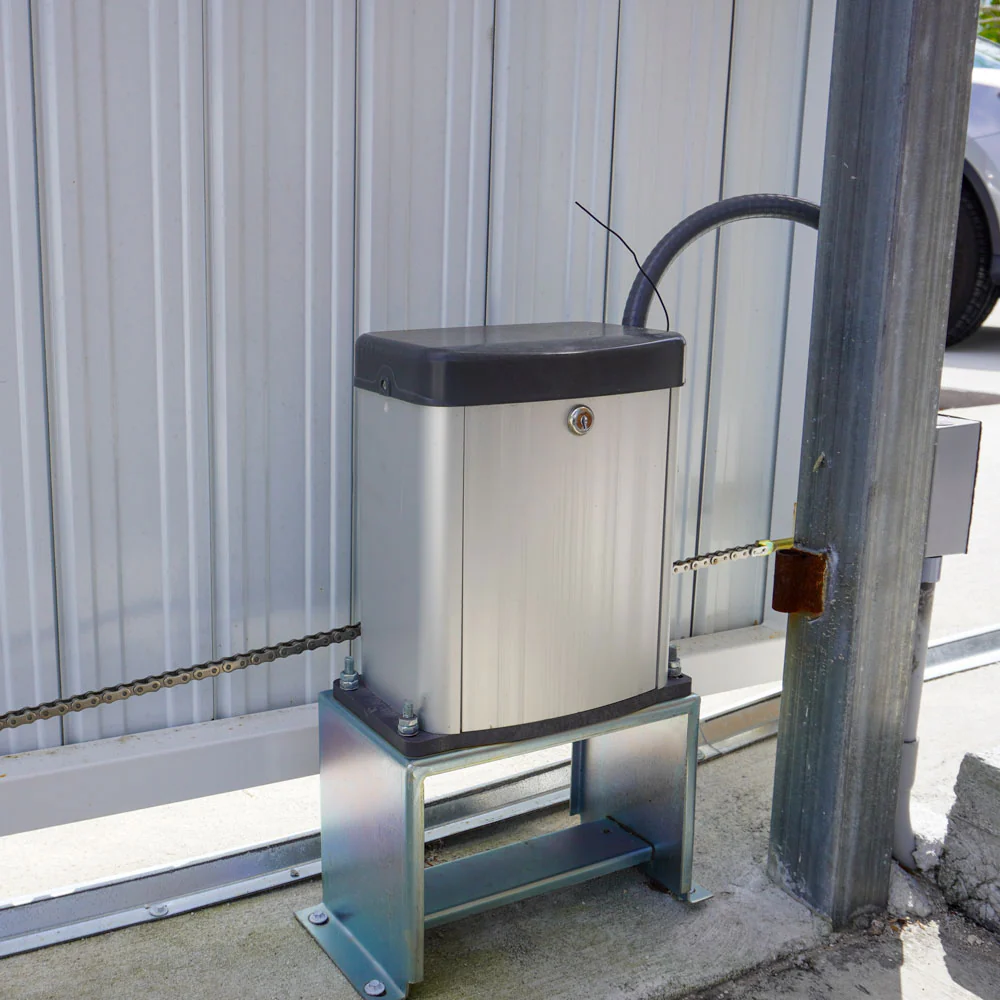

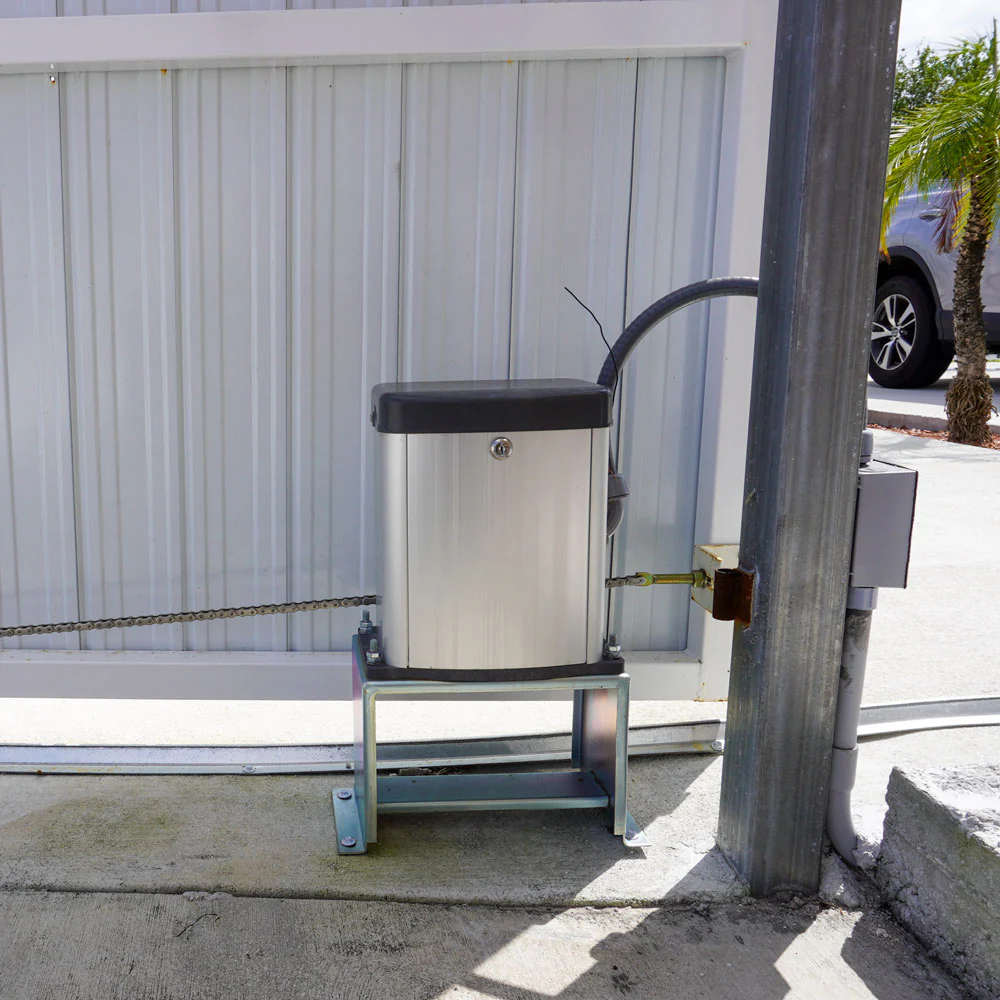

The FAS-J-SLIDECH300BBUP Chain-driven gate operator operates by forcing a straight piece of chain through its chain box. This length of the chain is extended between two chain brackets located at opposite ends of the gate. The FAS-J-SLIDECH300BBUP will handle a gate weighing up to 600 lbs. and up to 20 feet.

Includes

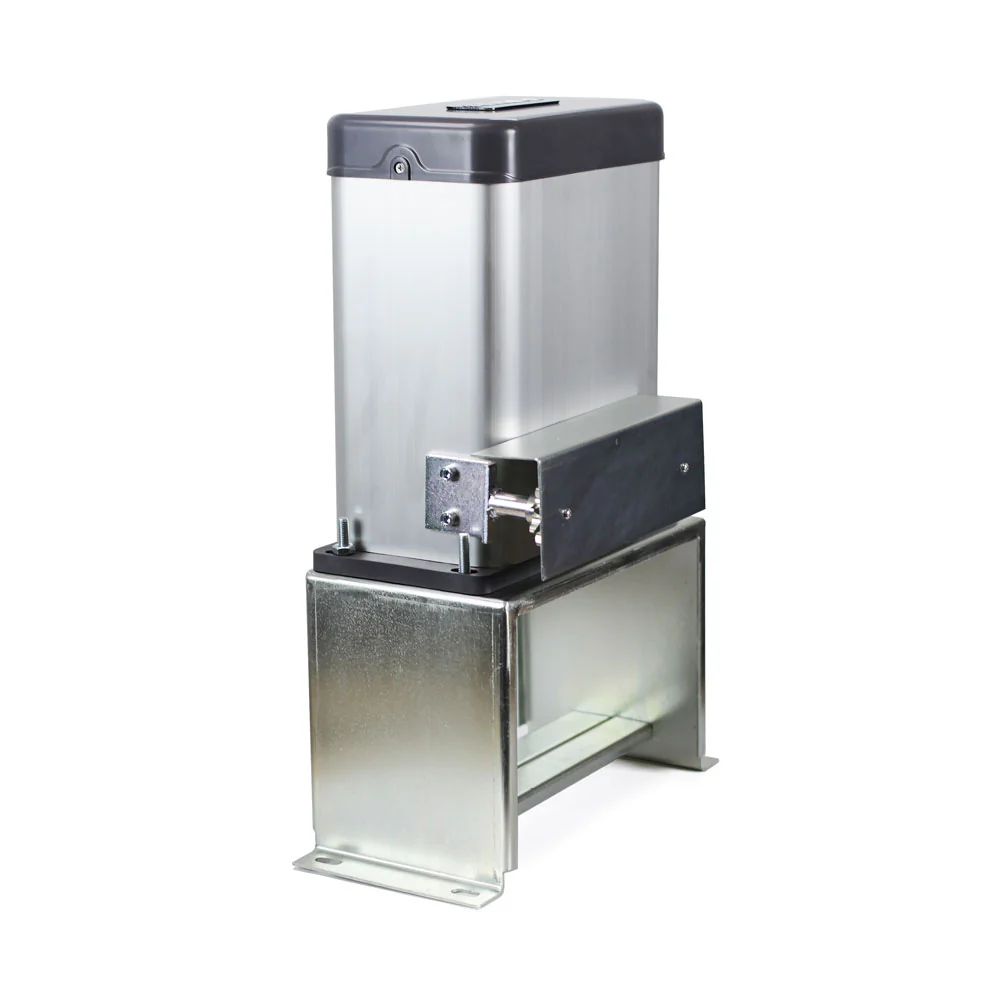

• J-Slide slide gate operator
• Built-in onboard 433 MHz receiver
• 2 - 4.5Amp 12v batteries
• 2 - FAS-J-4CHTX remote control transmitters
• U-shape mounting pedestal
• 20 ft. chain

xFeatures

• Ability to easily set position and location limits
• Soft-start and slow-stop technology
• Automatic closing function
• Multiple interfaces (infrared, solar, external buttons)
• Whole set chain wheel accessory
• 2-year Limited Manufacturers Warranty

Technical Specifications

• Power supply: 110VAC
• Maximum gate weight: 600 lbs.
• Maximum gate width: 20 ft.
• Motor: 24VDC 100W
• Output torque: Max. 8N•m
• Work duty: S2 30min
• Limit switch: Electronic Limit
• Gate move speed: 12m/min
• Remote control range: 100 ft.
• Extra remote control: 20
• Frequency: 433.92 MHz
• Noise: 60 dB
• Working temperature: -20ºC ~ +50ºC
• Extra battery: 24V 1.3 Ah

Note

• For safety, It Is imperative that safety devices be used to prevent injury or death. Please see the product option.

Here's Why The J-Slide Slide Gate Operator Is Such A Good Investment for Homeowners

Product Literature

• FAS-J-SLIDECH300BBUP Manual
• FAS-J-SLIDECH300BBUP Specs
• FAS-J-SLIDECH300BBUP Brochure
• Warranty Disclaimer


Manufacturer's Warranty

• 1 Year
