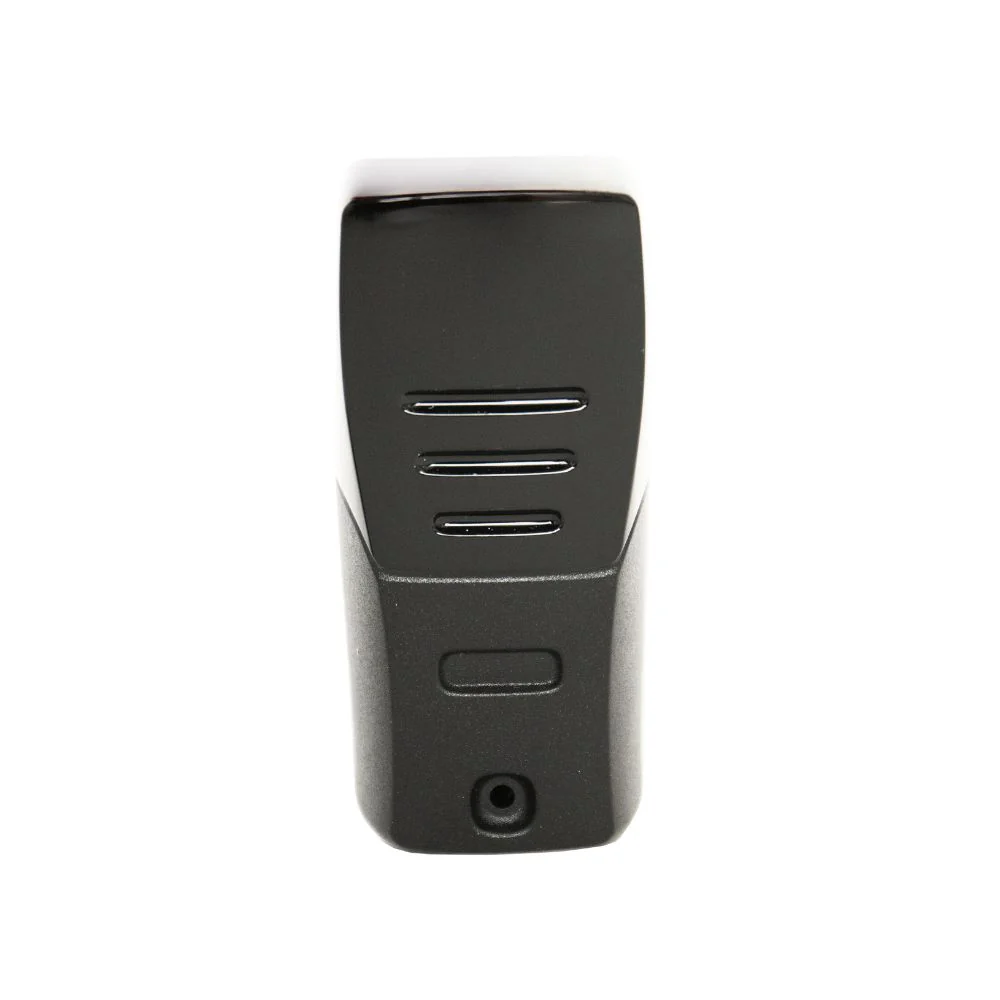

EMX Infrared Photoeye Kit | EMX-BPE-50

The BPE-50 Battery-Powered Photo Beam system uses 12 -24 VDC/AC on the transmitter and receiver. The transmitter has the option of using the two 3.6 volts batteries for power.

Features

• The BPE-50 only requires one side of the wiring when used with the included optional batteries

• 90-degree adjustment left or right
• Thru beam configuration

• Energy-efficient power-saving option
• 50 ft. operating range

Manufacturer's Warranty

• 2 Years

Technical Specifications

• Detection range: 50 feet
• Detection Angle: +/- 5%
• Expected Battery Life: 2 years
• Size: 4.4” (112mm) x 2.05” (52mm) x 1.3” (33mm)
• Power Supply: 12-24 VDC 24 VAC (2-3.6 Volt Lithium Batteries for transmitter optional /included)
• Current Draw: Current Draw
• Relay Type: 2 Form C DPST contact rating .5A @ 24VDC / 120VAC
• Temperature: -20C – 55C
• Wavelength: 880 nm
• Frequency: 787 Hz
• Environmental: IP 65
• Detect Indicator: Red LED
• Connector: Terminal block
• Relay contact: 0.5Amp
• Housing Material: PA6 30% FG
• Size: H 4.4in (112mm) x W 2.05in (52mm) x D 1.3in (33mm)
• Sensitivity: Jumper J1 on receiver
• Detection delay: < 30 ms
• Reset delay: < 120 ms
