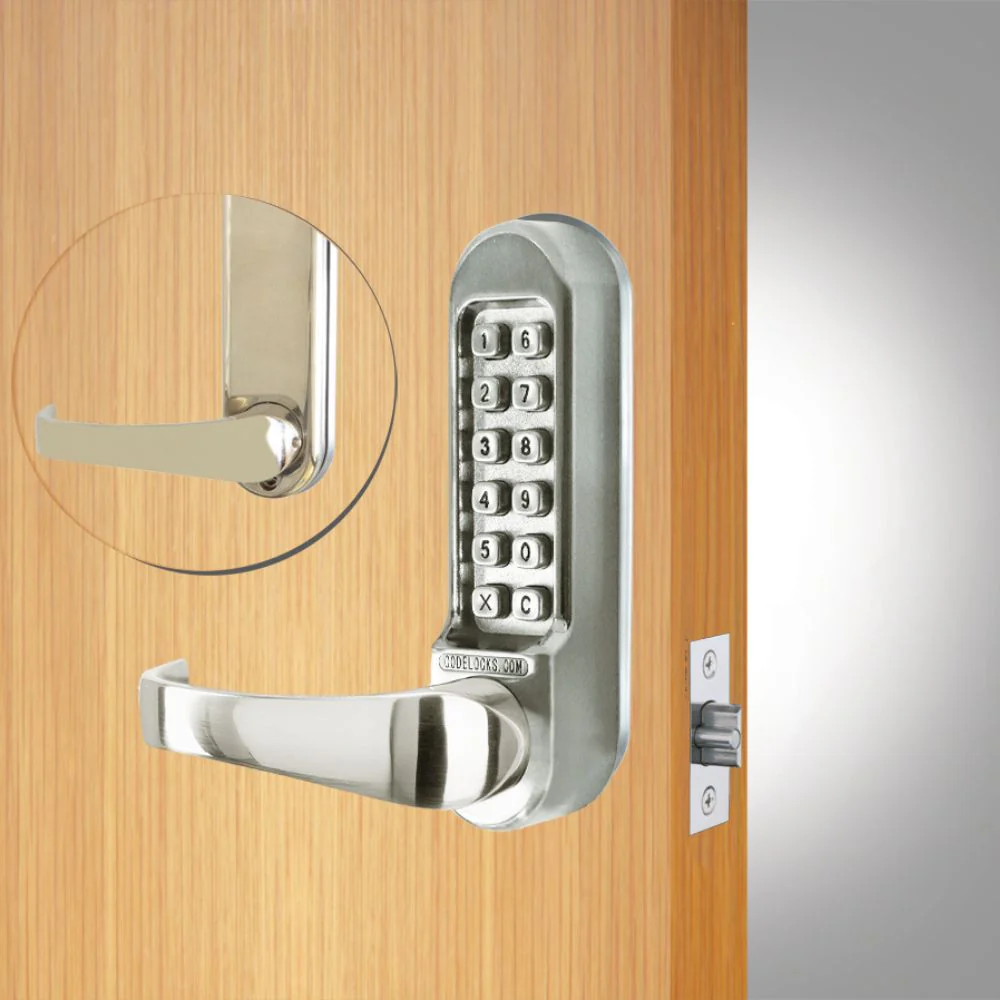

D&D Technologies CodeLocks CL515 Heavy Duty Tubular Latchbolt (Code Free) Stainless Steel | DND-DDCL515SS

The CL515 is a heavy-duty mechanical lock with a mortise latch and full-size lever handles. The spring-loaded latch bolt will lock automatically when the door is closed.

Supplied with a random code commencing with the ‘C’ clear button. To change the code after fitting, the lock must first be removed from the door. The code is non-sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence.

Features

• Internal doors and external doors
• Mechanical Codelock
• Heavy-duty tubular mortise latch
• Lever handle lock for doors hung on the left or right
• Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / home

Specifications

• Brand: CodeLocks
• Buttons: 2 x 6
• Code Change Method: Tumblers (Off Door)
• Codes: Single code - 2,047 nonsequential combinations available
• Door Thickness: 1 ³⁄₈" - 2 ³⁄₈" (35mm - 60mm)

• Finish: Stainless Steel
• Handed: Non-Handed - Locks will fit doors hung on the left or right
• Keypad: 12 stainless steel buttons
• Latch Type: 2 ³⁄₈" 60mm, 2 ³⁄₄" 70mm Mortise Latch
• Lock Dimensions: 7" (177mm) x 1 ⁷⁄₈" (48mm)
• Lock Material: Zinc Alloy
• Orientation: Vertical
• Spindle: Two part ⁵⁄₁₆" (8mm) spring loaded spindle
• Suitable for: Internal, External
• User Types: Code

Product Literature

• D&D Technologies CodeLocks CL515 Installation Template
• D&D Technologies CodeLocks CL500 Installation Instructions
• D&D Technologies CodeLocks CL500 Code Change Instructions
• D&D Technologies CodeLocks CL500 Datasheet
