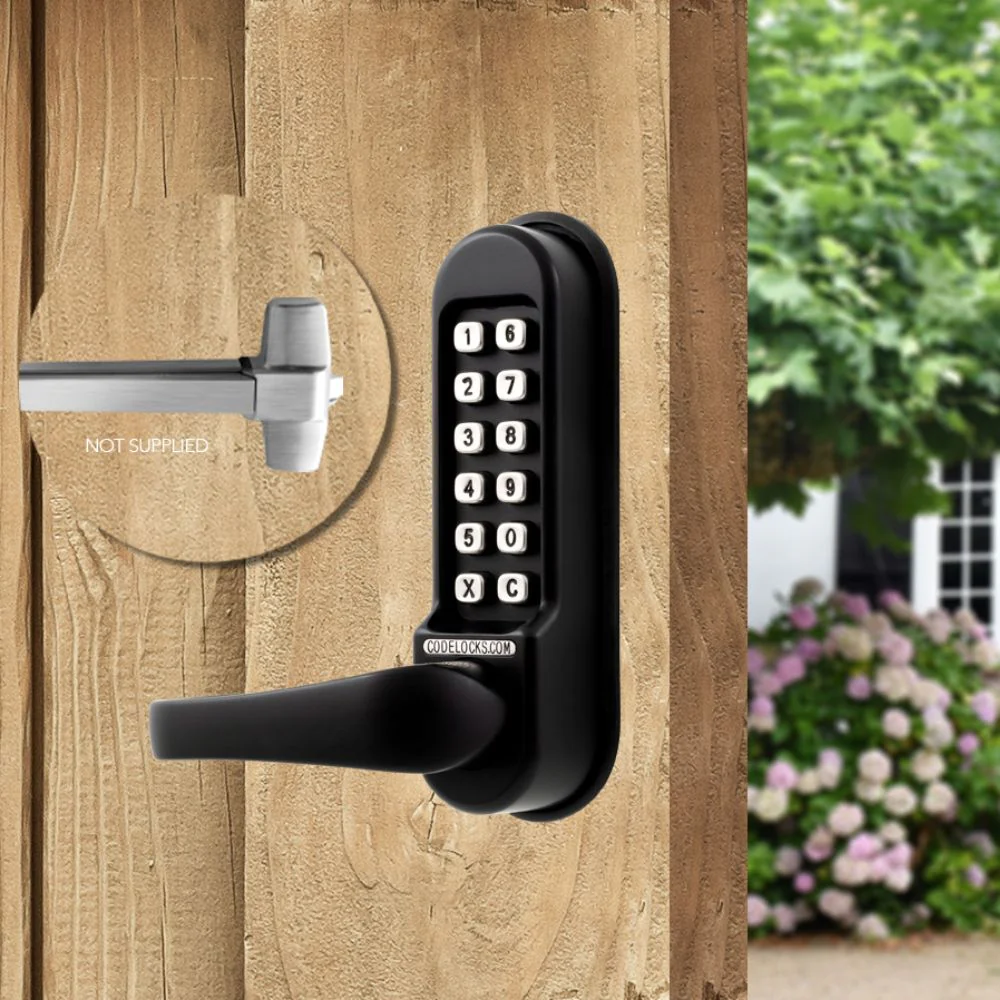

D&D Technologies CodeLocks CL500 Marine Panic Kit - Black | DND-DDCL500PKBKMG

Push Button Assembly for Rim Panic Device, Marine Grade

Heavy-duty mechanical locks with large full-size lever handles, allowing use as the primary lock on doors. An extra-long spindle is provided to work with most single-point panic pads or bars.  The outside lever will retract the latch freely until disabled.

Includes

• Neoprene seals

Features

• Salt spray tested 1000 hours (Tested in-house by Codelocks Ltd.)
• Durable marine grade black finish
• Specially enhanced finish for harsh environments
• Large full-size lever handles with return to door
• Ball shape knob available
• Suitable for internal and external use
• Tumbler alignment for easy code change
• Large three-coil lever return spring suitable for high-traffic use

Specifications

• Brand: CodeLocks
• Buttons: 2 x 6
• Code Change Method: Tumblers (Off Door)
• Codes: Single code storage - 2,047 nonsequential combinations available
• Door Thickness: 1 ³⁄₈" - 2 ³⁄₈" (35mm - 60mm)

• Finish: Black
• Handed: Non-Handed - Locks will fit doors hung on the left or right
• Keypad: 12 stainless steel buttons
• Latch Type: Mortice Lock (Sash)
• Lock Dimensions: 7" (177mm) x 1 ⁷⁄₈" (48mm)
• Lock Material: Zinc Alloy
• Marine by CodeLocks: Marine by CodeLocks
• Orientation: Vertical
• Panic Hardware By Codelocks: Panic Hardware
• Spindle: Two-part ⁵⁄₁₆" (8mm) spring-loaded spindle
• Suitable for: Internal, External
• User Types: Code

Product Literature

• D&D Technologies CodeLocks CL500 Panic Access Kit Installation Instructions
• D&D Technologies CodeLocks CL500 Panic Access Kit Code Change Instructions
• D&D Technologies CodeLocks Marine Range Datasheet
