D&D Technologies CodeLocks CL610 (Non Code Free) Back to Back Gate Box Kit | DND-DD96327

Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.

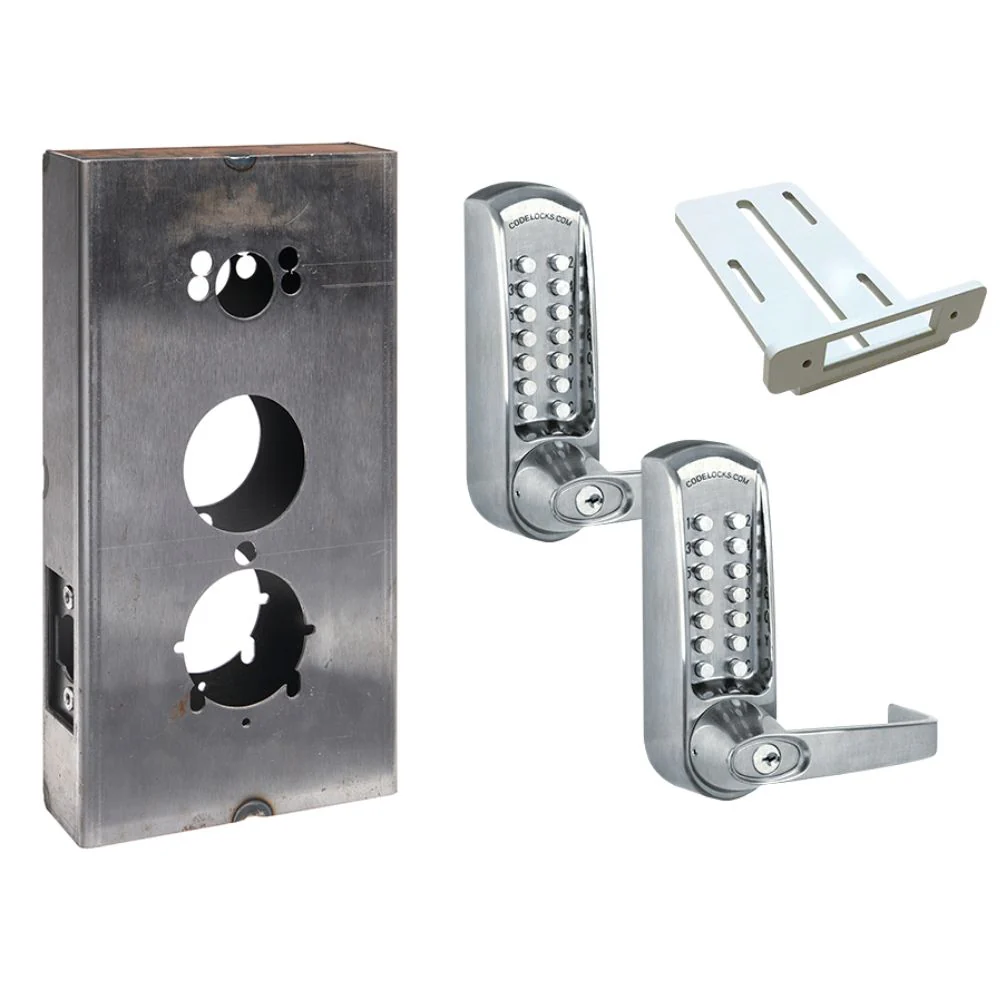

Gate Box Kit Includes

• CL610 Tubular Latchbolt Back to Back
• Codelocks installation, operating/programming instructions, fastening bolts and latch
• 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
• Adjustable stop bracket

Features

• Easy, effective gate and fence installation
• Complete kits with all required components
• Supplied as raw steel, ready to paint

About the CL610 Tubular Latchbolt Back to Back Mechanical Codelocks

Heavy-duty locks with on-door code changes and key override. Code free passage function, back-to-back options, and SFIC prep available.

• Tubular mortise latch
• Quick Code change - no need to remove lock from door
• Lever handle lock for doors hung on the left or right
• Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
• Tested to Grade 2 - ANSI - A156.2

Specifications

• Brand: Gate Solutions by Codelocks
• Buttons: 2 x 6
• Code Change Method: QuickCode (On Door)
• Codes: Single code storage - 8,191 nonsequential combinations available
• Finish: Brushed Steel
• Gate Box Dimensions: 10.25” (H) x 5.5” (W) x 1.75” (D)
• Gate Box Material: 14-gauge steel
• Handed: Non-Handed - Locks will fit doors hung on the left or right
• Keypad: 14 stainless steel buttons
• Latch Type: Tubular Latchbolt
• Lock Material: Zinc Alloy
• Orientation: Vertical
• Spindle: Two-part ⁵⁄₁₆" (8mm) spring-loaded spindle
• Suitable For: Internal, External
• User Types: Code

Product Literature

• D&D Technologies CodeLocks Gate Box Kit Installation Instructions
• D&D Technologies CodeLocks CL610 Datasheet
