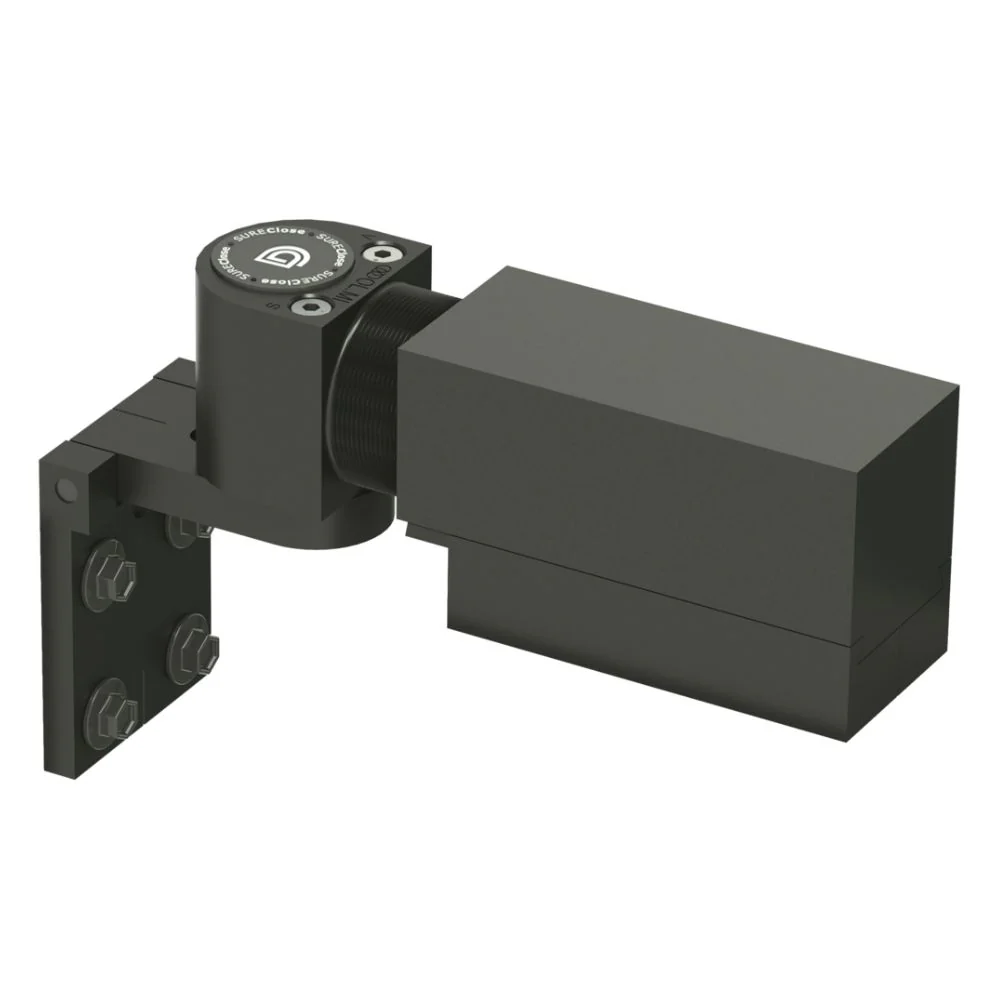

D&D Technologies SureClose EASY Closer (Aluminum Bracket + Screws) | DND-72108423

Hydraulic, Gate Closer for Center-Hinge Mounted Gates

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. The SureClose EASY model is specifically designed for new or existing gates using center-mounted pivot or barrel hinges.

The EASY is not a hinge as with other SureClose models; it’s an add-on device that can be used in many retrofit applications without the need to replace the existing hinges. Easy to install, it mounts to the top of gates that have a gate gap from 50-100mm.

Caution: When installing SureClose® Closers or Hinges to a swimming pool gate always confirm any safety requirements with your local Council or authorities to ensure compliance.

Features

• Add-on hydraulic closer - smooth and quiet
• Usable with most center-mounted hinge types
• Ideal for new or existing gates
• Self-closes gates up to 80kg (180lb) – See Chart

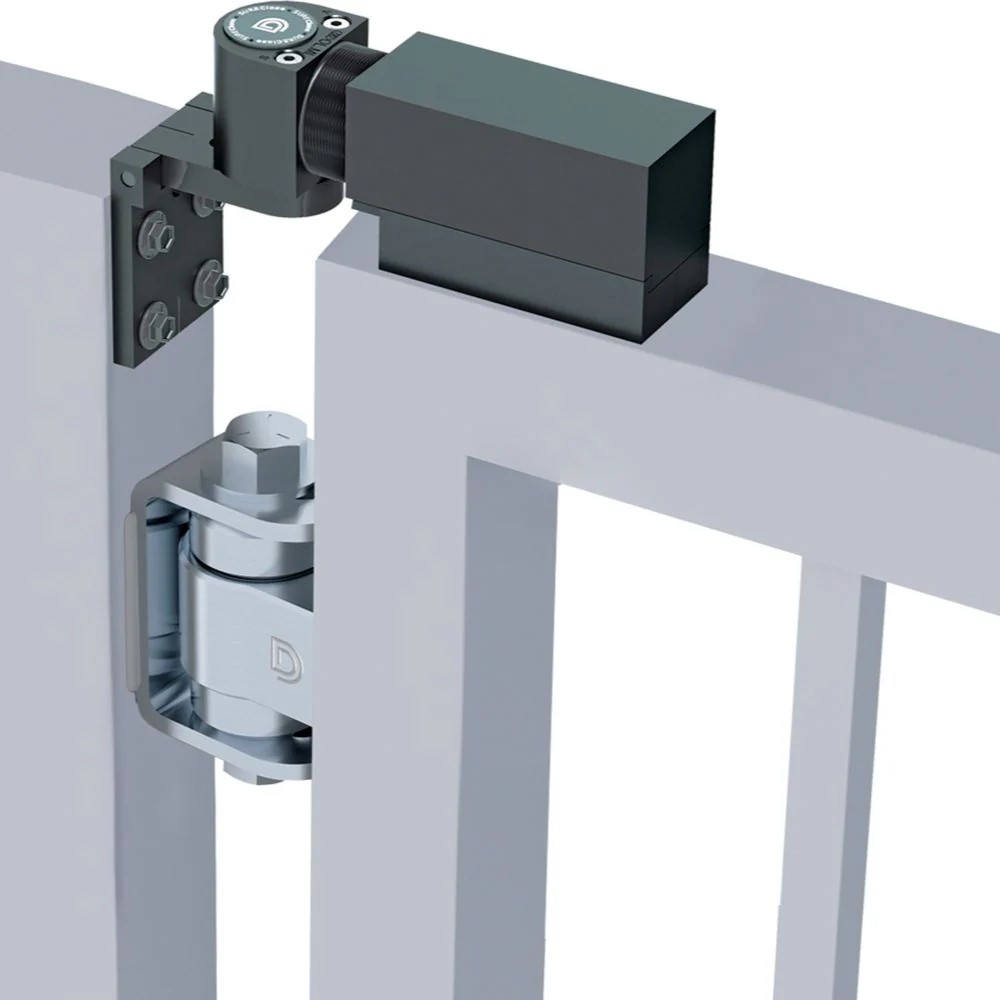

• Easy to install: mounts onto top of gate

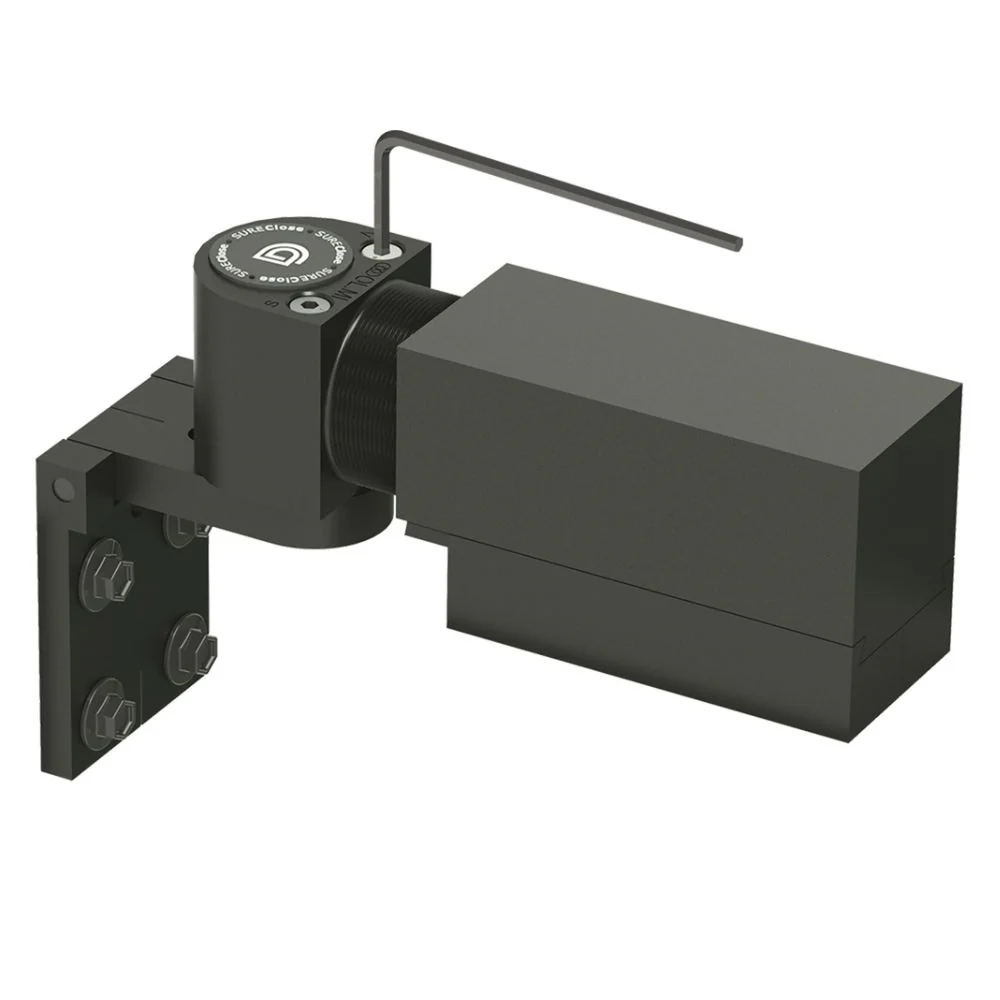

• Horizontally adjustable - up to 100mm (4”) gate gaps
• Same features as all 108SF closers
• Opens to, and self-closes from, 90˚ (no hold-open)
• Maintenance-free - never add fluid
• High corrosion resistance - thick 50 micron hard anodize
• 5-Year Limited Warranty

Specifications

• Brand:  SureClose
• Product Code: 72108423
• Gate Application
• Pool Gate
• Child Safety Gate
• Front Gate
• Side Gate
• Pedestrian Gate
• Driveway Gate - Double
• Driveway Gate - Single
• Pet Gate
• Playground Gate
• Public/Commercial Gate
• Security Gate
• Privacy Gate
• Safety Gate
• Gate Type: Self-Closing
• Gate Material: Aluminium, Steel/Ornamental Iron
• Self-Closing Gate Weight: Up to 80kg (180lbs)
• Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
• Gate Frame/Post Shape: Square-to-Square
• Min Post Size: (2") 50mm+
• Ideal Gate Gap: (2-4") 50-100mm
• Fixing Method: Screw-On
• Colour/Finish: Black Anodised

Product Literature

• D&D Technologies SureClose EASY Closer 72108423 Fitting Instructions
