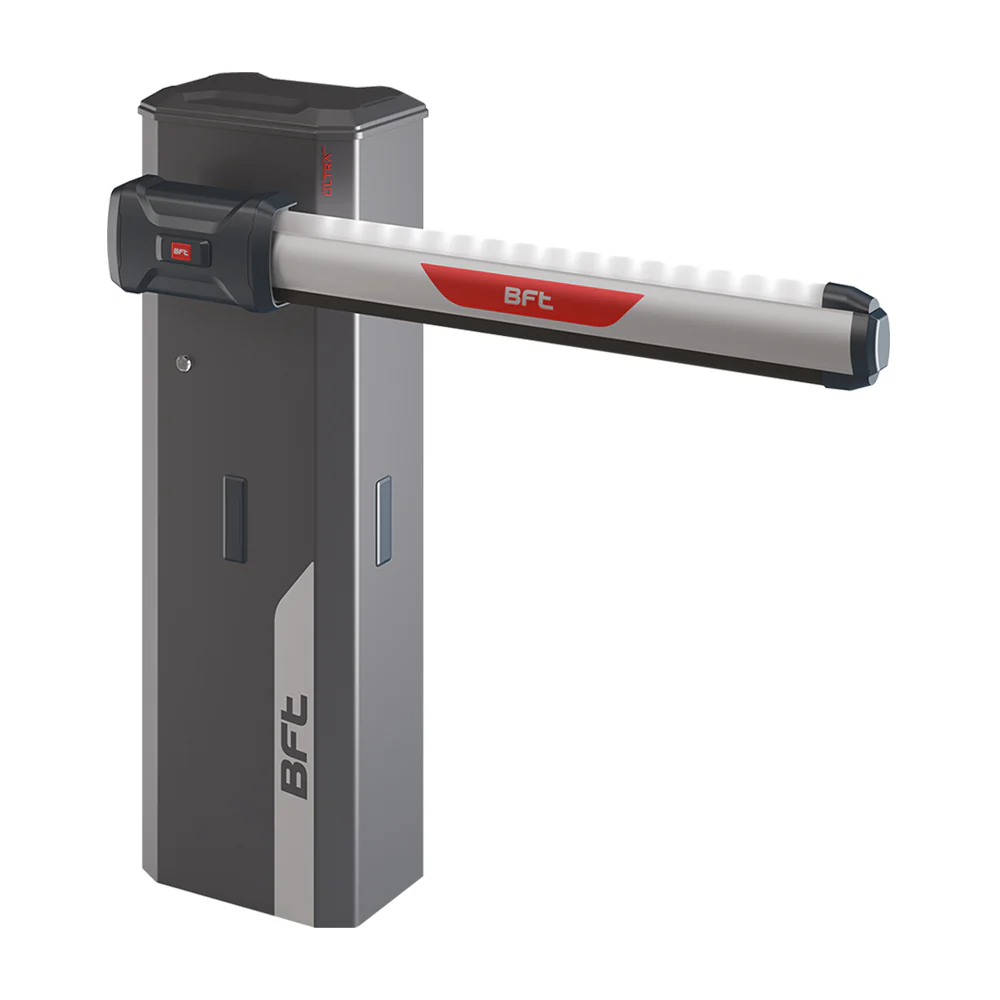

BFT GIOTTO BT A ULTRA 36 Electromechanical Automatic Barrier Operator Only | BFT-P940100-00006

Range of 24 V electromechanical barriers with opening speeds of between 2.2 and 4 seconds, depending on the length of the bar. Ideal for installation in large car parks, vehicle access points, and industrial gates between 6.5 and 20' wide. The high degree of movement control and impact resistance via an encoder. Integrated control unit with U-Link connectivity. Same appearance as the Maxima U36 barrier. Wide range of accessories for any type of application.

Note: Barrier arm not included.

Features

• Electro-mechanical barrier 24V for intensive/very intensive use for lane width from 6.5' up to 20'
• Opening time from 2,2 up to 4s depending on the boom length
• Standard version from 6.5' up to 13' and XL version from 14' up to 20' (by a different spring)
• Ideal to control access at parking areas, industrial sites, company grounds, car parks, and road accesses
• Impact reaction via encoder
• Barrier body design like Maxima U36 (smaller dimension)
• New ES boom compatible with PS/ES LIGHT R/G strip LED
• New GT-BOARD light board to manage red and green light, combined with MERAK GIOTTO ULTRA 36 control unit
• Compatible with PS boom (by dedicated bar holder) and PS/ES LIGHT
• U-LINK protocol

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Power supply:110-120V~ 50/60Hz
• Motor voltage: 24Vdc
• Internal lubrication: Permanent grease
• Power absorbed: 300 W
• Max torque: 280-290 Nm
• Opening time: 2.2 ÷ 4 s.
• Useful passage: 6.5' to 20'
• Maximum usage cycle:
• 3-metre bar: 5,000 operations/24h
• 6-metre bar: 2,000 operations/24h
• Type of boom (Not supplied): BOOM ES and BOOM PS
• Limit devices: Electromechanical
• Dimensions (WxDxH): 8.66"x13.39"x40.94" (220x340x1040mm)
• Weight (without boom): 91lbs (41kg)
• Impact reaction: Through the encoder
• Manual mechanical release: Customised key
• Environmental conditions: from -4 to 131°F (-20°C to +55°C)
• Barrier degree of protection: IP54
• Noise level: <70dBA
• Control unit: MERAK GIOTTO ULTRA 36
• Loadless consumption: 10.5W
• Control unit degree of protection: IP54
• Accessory power supply: 24V~ (max absorption 0.5A)
• Max. n° of remotes that can be memorized: 63
• Processing type: RAL7015 cataphoresis coating and paint
• Slowdown: Yes
• Interconnectivity: Yes
• Frequency of use: very intensive

Product Literature

• BFT GIOTTO BT A ULTRA 36 Datasheet
