BEA QUADSCAN Active Infrared Presence Sensor

Door mounted, active infrared safety sensor.

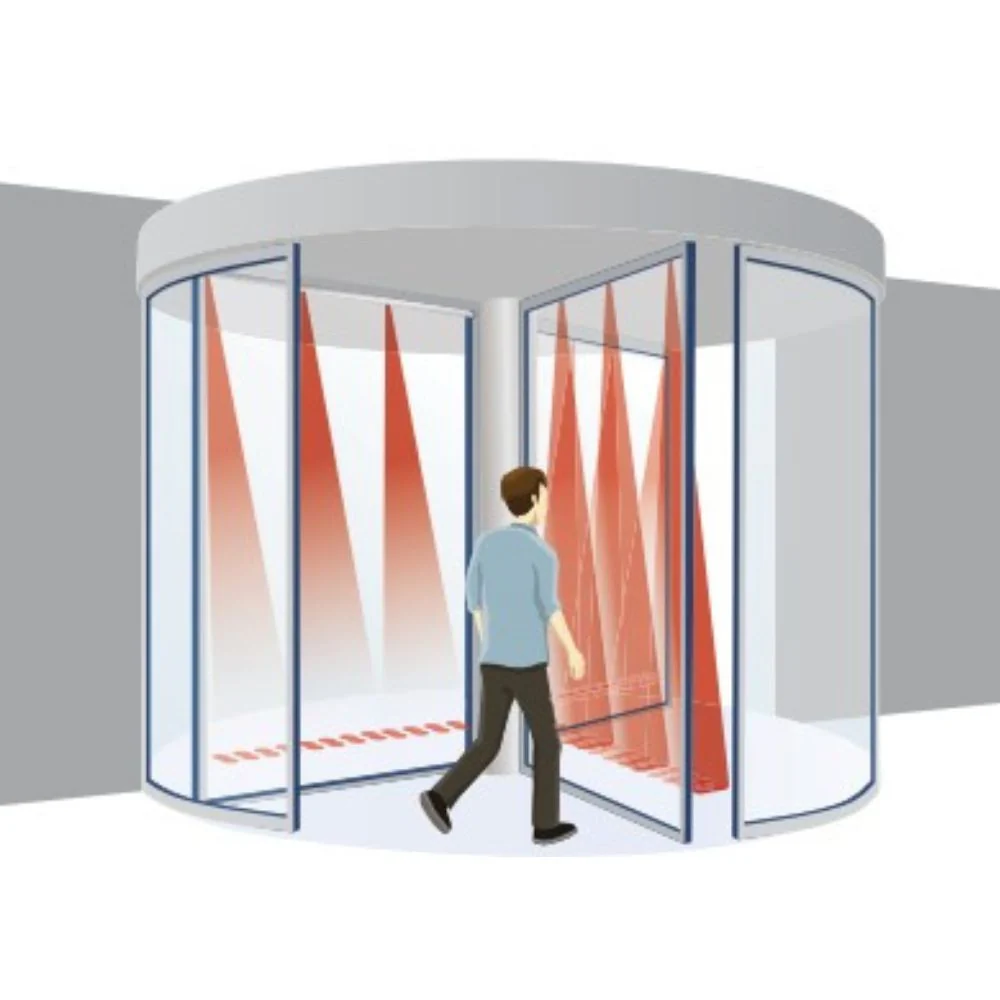

BEA’s QUADSCAN is a presence sensor designed for use on pedestrian automatic swinging doors. The QUADSCAN can be mounted at heights ranging from 43 to 118 inches. At a 78-inch-mounting height, four active infrared safety spots provide approximately 15.75 inches of safety protection per sensor. The QUADSCAN output offers individual safety side and approach side relays.

Features

• Easy setup and install - Easy installation and setup without the need for remote control.

• Independent relays - Independent relays for approach and safety side.
• Customizable - Four DIP switches for user-friendly adjustments; Primary/secondary configuration for ease of wiring.
• Standards compliant - External monitoring for improved system safety when paired with a monitoring-capable door control (requires a monitoring-capable door control)
• QUADSCAN I - 1 module, 34.5-inch end cap to end cap
• QUADSCAN II - 2 modules, 40-inch end cap to end cap for a 42-inch door leaf

Specifications

• Technology: Active Infrared
• Mounting Height: 3’ 7” – 9’ 10”
• Max. Number of Modules: 4; up to 6 if 24 VDC
• Detection Field at Finished Floor: 15 3/4” (W) × 2 3/4” (D) @ 78” (H)
• Range Adjustment: Mechanical range adjustment screw
• Reaction Time: 64 ms (typical)
• Input: 1 optocoupler (free of potential contact)
• Max. Contact Voltage: 30 V
• Voltage Threshold: High: > 10 VDC; Low: < 1 VDC
• Output: 2 Relays Free of Potential Contact
• Max. Contact Voltage: 42 VAC / VDC
• Max. Contact Current: 1 A (Resistive)
• Max. Switching Power: 30 W (DC); 60 VA (AC)
• Supply Voltage: 12 V – 24 VAC ±10%, 12 V – 30 VDC −5%; 10%
• Max Power Consumption: 65 mA @ 24 VAC; Each Module 75 mA @ 24 VDC
• Object Reflectivity: Min. 5% @ IR-wavelength of 850 nm
• Degree of Protection: IP53
• Temperature Range: -13 – 131 ºF (-25 – 55 ºC) 0 – 95% Relative Humidity, Non-condensing
• Norm Conformity: EMC 2004 / 108 / EC; MD 2006 / 42 / EC; EN ISO 13849-1:2008; Performance Level CAT 2; EN 12978

Product Video

Product Literature

• BEA Quadscan User Guide
• BEA Quadscan Cut Sheet
