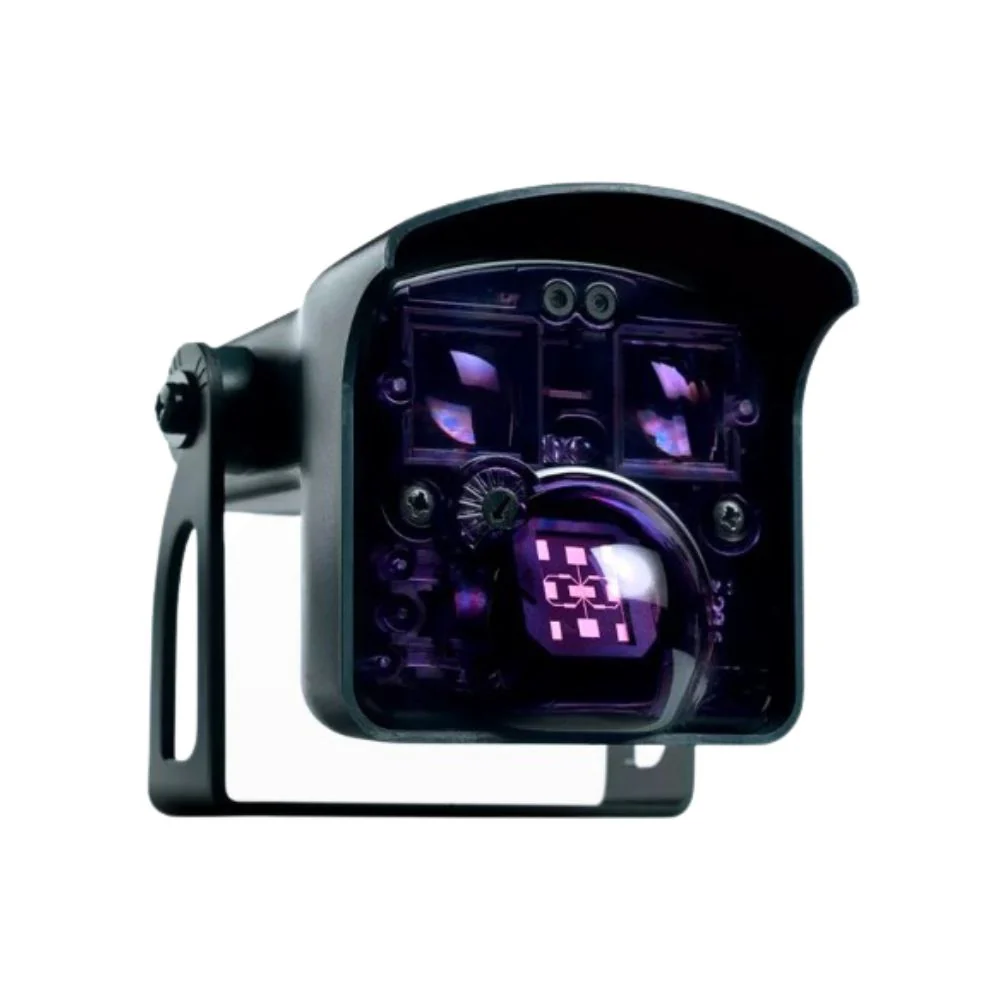

BEA IS40 / IS40XL Motion and Presence Sensor for Industrial Doors

BEA’s IS40 / IS40XL are dual technology sensors designed to provide motion and presence detection in industrial applications.

The standard IS40 can be mounted from 8 feet to 16 feet to fit any industrial application. For lower mounting heights, BEA’s IS40XL can be mounted from 6 ½ feet to 11 ½ feet.

Housed in a rugged IP65-rated enclosure, the IS40 / IS40XL will operate in harsh environments, capable of withstanding damage caused by wind-blown dust and rain and hose-directed water.

Features

• Energy savings - Bidirectional, unidirectional approach and unidirectional depart microwave detection options.
• Adjustable detection settings - Six modes of detection filtering are available for microwave immunity, as well as pedestrian and parallel traffic rejection.

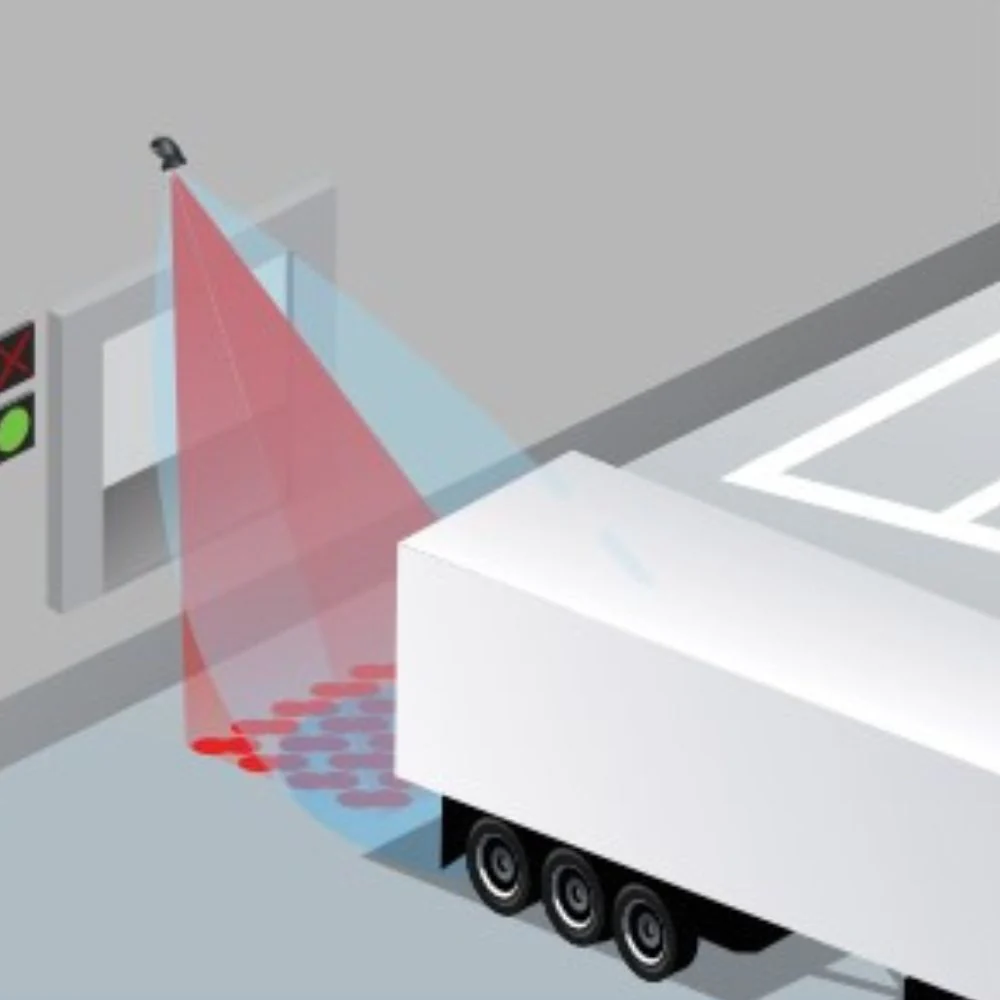

• Customizable patterns - Nine unique infrared patterns capable of highly flexible presence detection in any industrial environment.
• Reduce false detections - Adjustable infrared immunity modes mitigate environmental disturbances such as subtle door vibrations, light and sun.
• 10IS40 - Motion & presence sensor
• 10IS40XL - Extra-low motion & presence sensor

Specifications

• Technology: Microwave Doppler Radar | Active Infrared
• Detection Mode: Motion | Presence
• LED Signal
• Green (Activation Relay)
• Red (Presence Relay)
• Transmitter Frequency / Wavelength: < 5mW / cm² | < 250 mW / m²
• Max. Detection Field
• IS40: 13’ × 16 1/2‘ | 10’ × 10’**
• IS40XL: 13’ × 6 1/2‘ | 7 1/2‘ × 7 1/2‘
• Output Hold Time: 0.5 s – 9 s | 0.5 s
• Min. Detection Speed: 2 in / s | 0 in / s to activate detection
• Tilt Angle: -8 – 22° (Relative to sensor face) | 15 – 45°
• Mains Frequency: 50 – 60 Hz
• Power Consumption: < 3.5 W
• Output - 2 relays (free of potential change-over contact)
• Max. Contact Voltage: 42 VAC / VDC
• Max. Contact Current: 1 A (resistive)
• Max. Switching Power: 30 W (DC) / 48 VA (AC)
• Installation Height
• IS40: 8 – 16’
• IS40XL: 6 1/2 – 11 1/2’
• Temperature Range: -22 – 140 °F
• Dimensions: 3 3/4” (W) × 4” (H) × 5” (L)
• Material: ABS & Polycarbonate
• Cable Length: 32’
• Degree of Protection: NEMA 4 / IP65
• Norm Conformity: R&TTE: 1999 / 5 / EC; EMC 2004 / 108 / EEC
