BEA LZR-FLATSCAN SW Full Energy Swing Door Safety System

Single Curtain Stand-Alone, Door Mounted Safety System for Full and Low Energy Swing Doors.

BEA’s LZR®-FLATSCAN SW is a LASER-based Time-of-Flight presence sensor for use as a stand-alone safety sensor on automatic pedestrian swing doors. This solution can also be used as a reactivation sensor on the approach side of low-energy doors.

This superior technology generates 170 detection points across a single curtain, which allows LZR-FLATSCAN SW to cover the entire face of a single door leaf including the hinge area.

Finger Detection Technology™ utilizes 100 detection points within the hinge area of the door, protecting hands and fingers while the door is in motion.

The LZR-FLATSCAN SW is capable of exceeding the 156.10 section 8.2.2.3 standard for detection area and meets section 8.1.4 for monitoring.

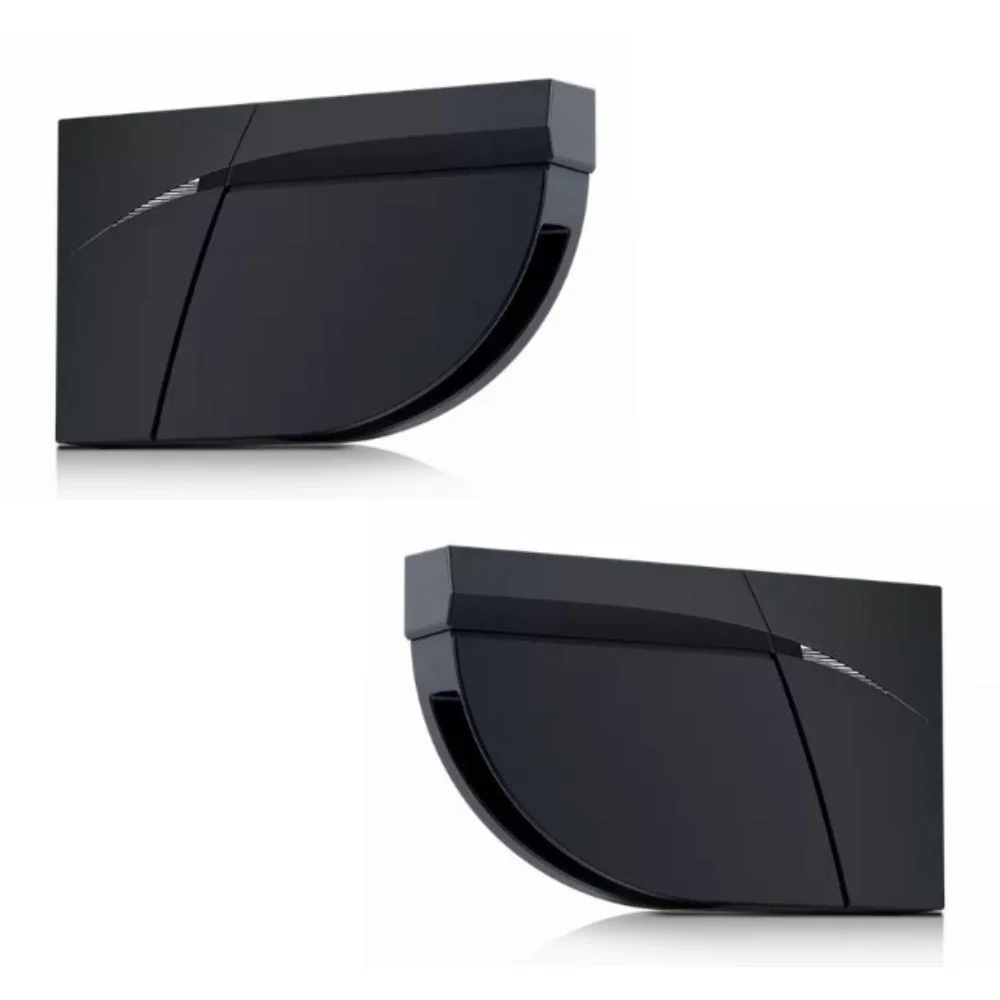

Kit Includes

• (1) Left Sensor
• (1) Right Sensor
• Cables & Accessories

Features

• Leading edge safety - Detection area extends beyond the leading edge of the door for enhanced safety.
• Hand Gesture Setup - Easy door width programming using Hand Gesture Setup™ reduces configuration time.
• Reduced uncovered zone - LASER technology provides a reduced uncovered zone of down to 3/4 inch.
• Reduced components - Hubless system offers fewer components for easier setup and installation.

Specifications

• Technology: LASER scanner, Time-of-Flight measurement
• Detection Mode: Presence
• Max. Detection Range: 13’ (diagonal) with reflectivity of 2% (e.g. at (W) × 5’ > max. (H) × 12’), see Page 15 of Users Guide
• Detection Area
• Door Leaf Safety: 90°
• Pinch Zone Safety: 16°
• Angular Resolution
• Door Leaf Safety: 1.3°
• Pinch Zone Safety: 0.2°
• Typ. Min. Object Size
• Door Leaf Safety: 4” @ 13’ (in proportion to object distance, DIP 2 = ON)
• Pinch Zone Safety: 3/4” @ 13’ (in proportion to object distance, DIP 2 = ON)
• Emission Characteristics: IR LASER - Wavelength 905 nm; max. output pulse power 25 W; Class 1
• Supply Voltage: 12 – 24 VDC ±15%
• Power Consumption: ≤ 2 W
• Response Time
• Door Leaf Safety: max. 50 ms
• Pinch Zone Safety: max. 90 ms
• Test Input: 30 VDC (max. switching voltage) low < 1 V high > 10 V (voltage threshold)
• Output - 2 electronic relays (galvanic isolation - polarity free)
• Max. Switching Voltage: 42 VAC / VDC
• Max. Switching Current: 100 mA
• LED Signals
• Red: Swing side detection
• Green: Approach side detection
• Yellow: Error
• Dimensions: 5 ½” (W) × 3 1 ⁄3” (H) x 1” (D) (mounting bracket adds ¼”)
• Material / Color: PC / ASA / Black, White or Silver
• Tilt Angles: 2 – 10° (without mounting bracket)
• Degree of Protection: IP54 (EN 60529)
• Temperature Range: -22 – 140 °F (if powered)
• Humidity: 0 – 95% non-condensing
• Vibrations: < 2 G Min.
• Door Leaf Speed: 2° / s
• Norm Conformity: ISO 13849-1 Pl “d”/ CAT2; IEC 60825-1; IEC 60950-1; IEC 61000-6-2; IEC 61000-6-3; IEC 62061 SIL 2
